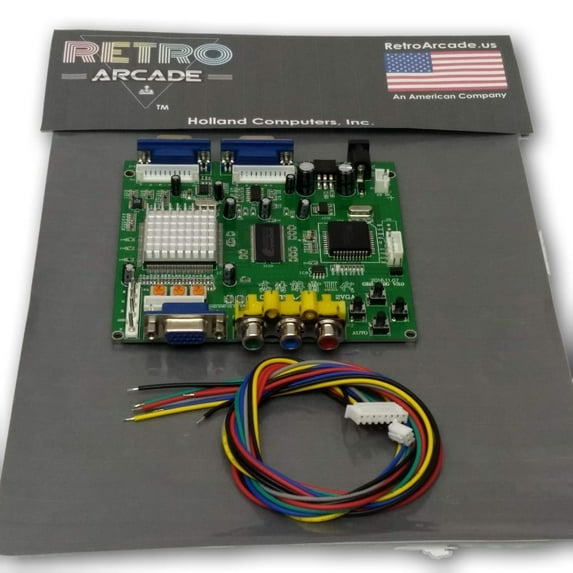

Arcade Game RGB-CGA-EGA-YUV to VGA Arcade HD-Converter PCB (GBS-8220) Converts older arcade systems

Dual Monitor Outputs! (two VGA signal output)This CGA-EGA-YUV to VGA Arcade Converter PCB allows all types of RGB, EGA, VGA or YUV component signals to be up-converter and display on a 31KHz PC VGA monitor, TFT monitor, LCD display, or HD-TV with VGA connection. No need to set dip switches in order to figure out the specific input frequency as all inputs are detected automatically! A great alternative to purchasing a expensive, heavy CGA monitor. Use this converter with an existing computer monitor or install a light-weight LCD display or even use to build your own supergun!Includes the board, two pin power connector cable and eight pin video input cable. Features/Specifications: Supports CGA-EGA-VGA-YUV Component Signal Input Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768) CGA-EGA-VGA signal auto scan (15KHz, 24KHz, 31KHz) YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p) On Screen Display (English and Chinese) Supports image position control & image zoom control True digital 24-bit A/D converter for true 16.7-million color conversion. Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc) Works With all Jamma boards and MAME systems Click Here for wiring diagrams and manuals! UPC Code: 670541219089 Jamma 60-in-1 PCB, iCade, Arcade Multigame, Multicade board, JAMMA, Jamma PCB, Jamma 60-in-1, 60 in 1, Jamma Boards, 60 in 1 Arcade, 60 in 1 Jamma, 19 in 1 jamma, Jamma Arcade, iCade 60 in 1, iCade 60-in-1, Jamma 302-in-1, Jamma 302 in 1, Jamma 19-in1, Jamma 19 in 1, Jamma Board, Jamma Boards, Cocktail Arcade, Jamma Button
