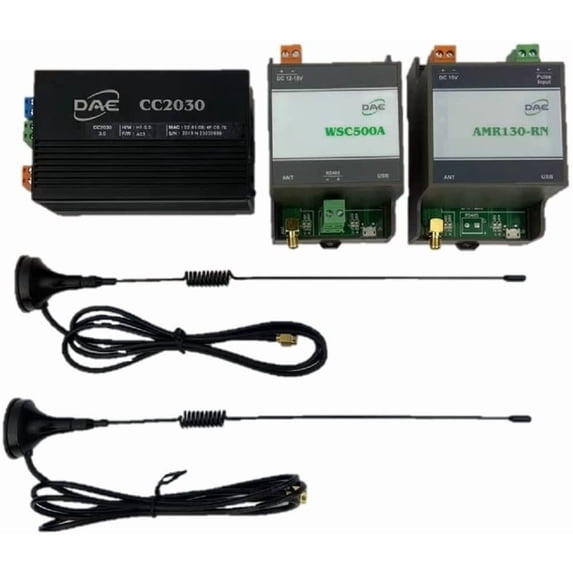

DAE CC2030 KIT+AMR130-RN KIT+DAE WSC500A Connected Wirelessly, read 1 Water Meter by PC, Cell Phone, generate billing report

Please refer to 3rd pictures for DAE Cloud Metering Solutions for Water. CC2030 will collect water usage from AMR130-RN KIT (for 1 meter) through WSC500A wirelessly and send them to the cloud (DAE server) by Ethernet. With cell phone/PC, you can read the meter remotely and generate billing reports.. Operating Temperature: -40 to 70˚C (-40 to 158˚F). Operating Humidity: 0 to 90% RH (non-condensing). Auxiliary Power: DC 12-15V / 5.4VA. Communication: RF 900~930MHz (Default: 915MHz). RF Transmission Rate: 0.3~62.5 ( Default: 2.4kbs ). Transmitter RF Output Power: 22dBm, 17dBm,13dBm, 10dBm. Antenna Type: Suction type, 3.5dBi. Transmission Range: 5 km (Clear weather, open area without obstacles, antenna 2 meters above the ground.). Certification: FCC certified. Settable Parameters: Address 0~254; Baud Rate 1200, 2400, 4800, 9600 bps; Decimal Places: 0, 0.0, 0.00; Pulse Divider: 1, 4, 8, 10, 16, 32, 64. Non-volatile memory retains metering data during power failure. To securely transfer metering data for DAE Cloud Metering Solutions on Water, please use UL2464 cable to extend connection between water meters (have about 4 ft pulse cable) and AMR130-RN, or reading of Cell phone/PC may be more than reading of meter due to exterior interference. With UL2464 cable, connection between meter, AMR130-RN can be extended at least 328 ft.. You must have back-flow-prevention valve in your piping system, or the reading of Cell phone/PC may be more than the reading of water meter due to the backflow. Most of US piping system have back-flow-prevention valve. If not, please install one or refer to Non-Return-Valve (like NRVAS-75 for AS200U-75P) in DAE Controls Website, an in-expensive backflow prevention valve to be installed at the outlet of water meter.
