Hero image 0 of INTSUPERMAI Paper Core Compression Strength Tester Flat Crush Strength Tester for Paper Board, 0 of 10
INTSUPERMAI Paper Core Compression Strength Tester Flat Crush Strength Tester for Paper Board
(No ratings yet)
Key item features
- The system automatically calculate RCT, ECT, no need to calculate by user , reduce the workload and error.
- With package stacking test function, can directly set strength, time, after the completion of testing , automatically shut down.
- After the completion of the test , has automatically return function, automatically determine the crushing force and automatically save the test data.
- Can set three speeds,Liquid crystal display panel, a variety of units can choose.
- Reasonable design, simple use, easy to maintain, strong applicability, significant energy saving effect.
Specs
- Measurement accuracy1%
- Brandintsupermai
- FeaturesElectronic Display
- Housing materialSteel
- Accessories056428
- Dimensions14.20 x 14.20 x 22.80 "
More seller options (1)
Starting from $1,499.00
About this item
Product details
Product Overview:

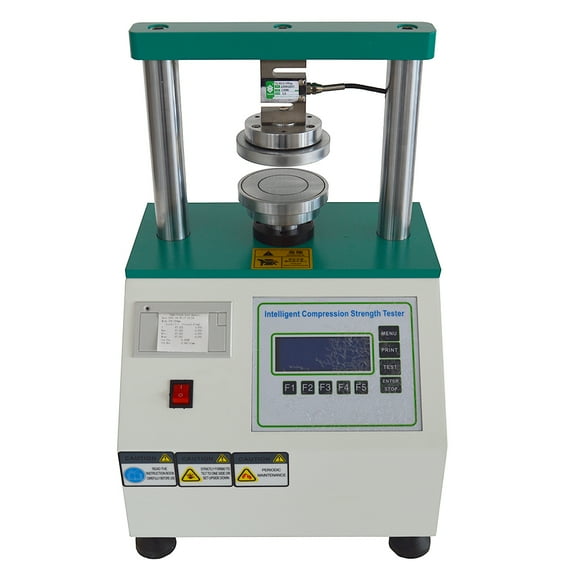

Cardboard compression tester known as computer monitoring control compression tester, electronic compression tester, is the basic instrument of cardboard / paper compressive strength testing. The tester equipped with various special accessories can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhesive Strength.Testing and other general compression testing, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
Product Parameters:
Voltage: AC110V/60Hz
Measurement range: ≤500 kg(1102lb)
Accuracy: ± 1%
Unit switch: N, kN, kgf, gf, lbf
Test speed: 0.5"/min
Return speed: 1.2"/min
Upper and lower platen parallelism: < 0.05mm
Pressure plate size: Diameter:4.3"/Φ110 mm(can be customized according to customer requirements)
Up and down pressure plate spacing: 2.4"/60mm(can be customized according to customer requirements)
Resolution ratio: 0.1N
Product size: 14.2"*12.6"*22.8"(36*32*58cm)
Gross weight: 101.8lb(46.2kg)
Items included: 056428
INTSUPERMAI Paper Core Compression Strength Tester Flat Crush Strength Tester for Paper Board
Cardboard compression tester known as computer monitoring control compression tester, electronic compression tester, is the basic instrument of cardboard / paper compressive strength testing. The tester equipped with various special accessories can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhesive Strength.Testing and other general compression testing, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
Product Parameters:
Voltage: AC110V/60Hz
Measurement range: ≤500 kg(1102lb)
Accuracy: ± 1%
Unit switch: N, kN, kgf, gf, lbf
Test speed: 0.5"/min
Return speed: 1.2"/min
Upper and lower platen parallelism: < 0.05mm
Pressure plate size: Diameter:4.3"/Φ110 mm(can be customized according to customer requirements)
Up and down pressure plate spacing: 2.4"/60mm(can be customized according to customer requirements)
Resolution ratio: 0.1N
Product size: 14.2"*12.6"*22.8"(36*32*58cm)
Gross weight: 101.8lb(46.2kg)
Items included: 056428
INTSUPERMAI Paper Core Compression Strength Tester Flat Crush Strength Tester for Paper Board
- The system automatically calculate RCT, ECT, no need to calculate by user , reduce the workload and error.
- With package stacking test function, can directly set strength, time, after the completion of testing , automatically shut down.
- After the completion of the test , has automatically return function, automatically determine the crushing force and automatically save the test data.
- Can set three speeds,Liquid crystal display panel, a variety of units can choose.
- Reasonable design, simple use, easy to maintain, strong applicability, significant energy saving effect.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Measurement accuracy
1%
Brand
intsupermai
Features
Electronic Display
Housing material
Steel
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
