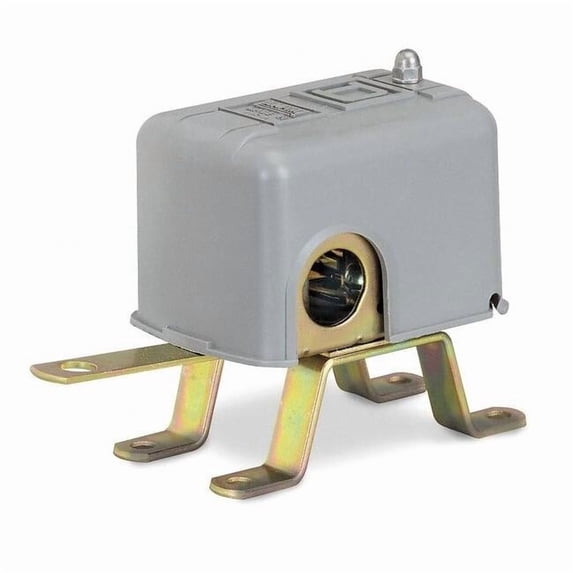

Telemecanique Sensors DPST Open Liquid Level Switch Close on Rise 575VAC 9036GG2

Telemecanique 9036GG2 Float Switch

Brand: Telemecanique

Part Number: 9036GG2

Square D Float Switch, Type G Standard, Series: 9036, 575 VAC, 20 A, 3.7 kW Wattage, Screw Clamp Connection, NEMA 1 Enclosure, -22 to 220 deg F Operating, Surface Mounting

Additional Description: TELE-9036GG2 FLOAT SWITCH 575VAC 5HP G +OPTIONS

Catalog Description: This product is part of the Nema Pressure Switches range, an offer of float switches. This float switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. The open tank float switch supports pedestal mounting method and vertical float rod angle for operating in any position. It is furnished with screw clamp terminals for electrical connection and 3 knockouts for 1/2inch conduit. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. The enclosure is made of NORYL thermoplastic resin or equivalent material. It weighs 2.17lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. It is a NEMA 1 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. Float switch is lever operated and designed for open tank app
