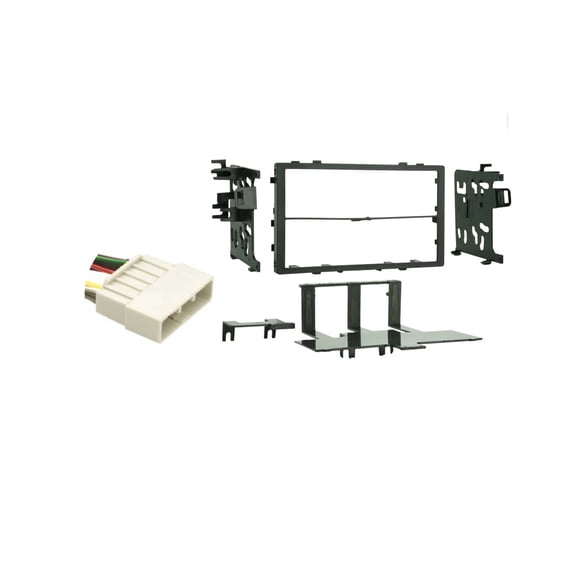

Metra Honda Accord 1990-1997 Double DIN Stereo Harness Radio Install Dash Kit

Metra Honda Accord 1990-1997 Double DIN Stereo Harness Radio Install Dash Kit

• This package includes:
• 1 x Metra 95-7801 Single or Double DIN Installation Dash Kit for select 1990-2006 Acura / Honda / Isuzu vehicles
• 1 x Metra 70-1720 Wiring Harness for select 1986-2003 Honda / Acura vehicles
• Designed to replace only factory standard audio systems; not compatible with factory premium audio sound
• Metra 95-7801 Single or Double DIN Installation Dash Kit
• Install dash kit for Double DIN/ISO radios
• Precision tolerances for a gapless fit between the dash and the kit
• Painted to match factory dash
• High-grade ABS plastic construction
• Factory style texture
• Metra 70-1720 Wiring Harness:
• Car harness for select 1986-1998 Honda/Acura vehicles
• 16-pin plug that plugs into the car harness
• Original high-quality factory plug
• High impact ABS OEM plastic molded connectors for a perfect fit
• OEM quality terminals
• Allows installation of an aftermarket radio using existing factory wiring and connectors
• No cutting of factory wiring needed
• Connections:Yellow: 12V Constant
• Red: 12V Accessory
• Black: Ground
• Orange: Dash Light Dimmer/Illumination
• Green: Left Rear Speaker (+)
• Green with Black Stripe: Left Rear Speaker (-)
• Gray: Right Front Speaker (+)
• Gray with Black Stripe: Right Front Speaker (-)
• White: Left Front Speaker (+)
• White with Black Stripe: Left Front Speaker -
• Purple: Right Rear Speaker (+)
• Purple with Black Stripe: Right Rear Speaker -
