2.8 Inch LCD Vector Network Analyzer Antenna Analyzer With Battery Case
2.8 Inch LCD Vector Network Analyzer Antenna Analyzer With Battery Case
Hero image 0 of 2.8 Inch LCD Vector Network Analyzer Antenna Analyzer With Battery Case, 0 of 8
Eugene Color

2.8 Inch LCD Vector Network Analyzer Antenna Analyzer With Battery Case

(No ratings yet)
2.8 Inch LCD Vector Network Analyzer Antenna Analyzer With Battery Case2 8 Inch LCD Vector Network Analyzer Antenna Analyzer With Battery Case2 8 Inch LCD Vector Network Analyzer Antenna Analyzer With Battery Case
Actual Color:With demo kit

Key item features

  • 1. Lower power supply noise, less noise when using harmonics;
  • 2.1300mAh battery, 2.8-inch compact size can also get 6 hours of continuous use time;
  • 3. Add a MicroSD card to save test data;
  • 4. Add RTC support;
  • 5. Modify the port names to Port1 and Port2;
  • supports up to 32GB and only supports SPI mode.
  • Features:
  • The PC control software can export (snp) files, which can be used for various radio design and simulation software.
  • The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz.
  • It is mainly for the study of customers who can DIY, you need to prepare the SMA cable yourself.
  • It has no metal shield. The main advantage is that users with strong hands-on ability can open the machine to view the circuit structure.
  • However, when measuring frequencies above 300M, it is easy to be interfered by other signals. So this product is recommended for learning principles and use at lower frequencies.
  • The 50k-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic.
  • The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.
  • Small and portable, easy to use, this project aims to provide an RF gadget but useful instrument for enthusiast.
  • Specifications:
  • Color: black plastic case
  • Measurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)
  • RF output: -13dbm (maximum -9dbm)
  • Frequency accuracy: <0.5ppm
  • Measurement range: 70dB (50KHz-300MHz), (50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)
  • Port SWR: <1.1
  • : 2.8 inch TFT (320*240)
  • USB interface: USB type-C
  • Communication mode: CDC (serial)
  • USB: 5V 120mA
  • Battery: 3.7v battery
  • Number of calibration points: 101 (fixed)
  • Number of scanning points: 101 (fixed)
  • tracking: 4, Marking: 4, Setting save: 5
  • PCB size: 85.5 * 54 * 11mm / 3.4 * 2.1 * 0.4in (without connectors and switches)
  • Package weight: 245g

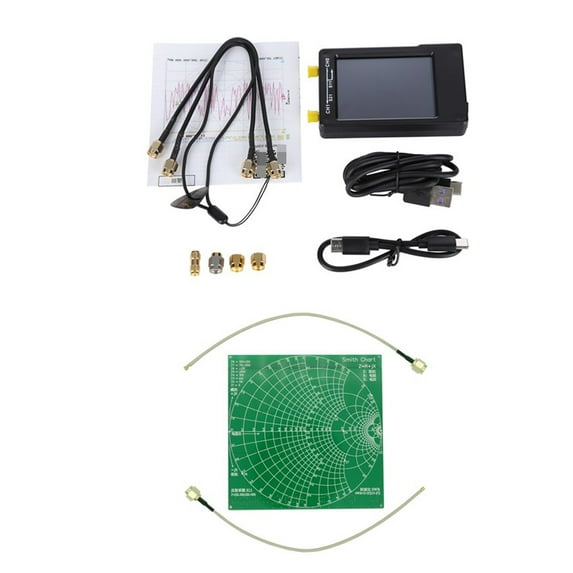

  • Package include:
  • 1 x with 650mAh battery
  • 1 x USB Type-C cable
  • 1 x 25cm USB TypeC to TypeC cable
  • 2 x 20cm SMA male to male RG174 RF cable
  • 1 x SMA calibration set
