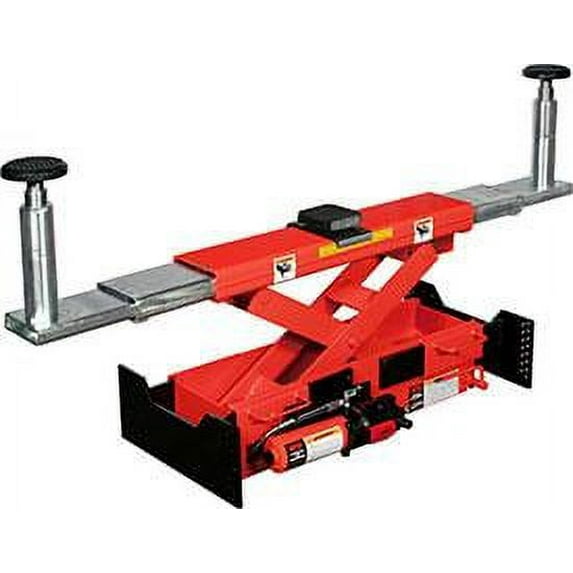

Norco 3 Ton Capacity Air / Hydraulic Pump Operated Rolling Lift Bridge - 79324G

Used in quick lube pit applications or in conjunction with above ground lifts. The bridge straddles the lift rails and raises the vehicle’s tires off the rails for wheel alignment, brake, tire and suspension work.

The dimensions are:

Stroke	9"
Length	39.875" - 63"
Width	21.5"
Height	34.6875" - 62.8125"
Shipping Weight	325 lbs.

The features are:

• Push button air/hydraulic pump provides safe, quick lifting up to 9”.
• The lifting pads safely support the vehicle on the bridge and the adjustable lift arms span up to 63”.

• Universal mounting brackets adjust to a lift rail opening of 46-1/2”.

• Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings for
  smooth maneuverability of bridge on lift rails. These brackets are sold separately.

• Mechanical stop prevents accidental lowering of bridge.

• Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop.

• Equipped with rubber faced saddle for differential lifting.

• Included lift adapters: (2) 3-1/2” Adapters, (2) 5” Adapters, and (2) Padded Saddles w/ Extension Screws
• Available mounting adapters:
  79326D:Flat-EndAdapter Bracket Kit
  79327D:Hook-EndAdapter Bracket Kit
• Overall width from outside edge of lift pad:
  - Arms retracted: 39-7/8”
  - Arms extended: 63”

Note:To achieve maximum lifting capacity, the lifting surface must be raised at least 3.25” higher than its lowest point.

Note:The model79326Dflat-end or model79327Dhook-end adapter kits must be ordered separately to connect the universal mounting bracket to the pit/lift rails.
