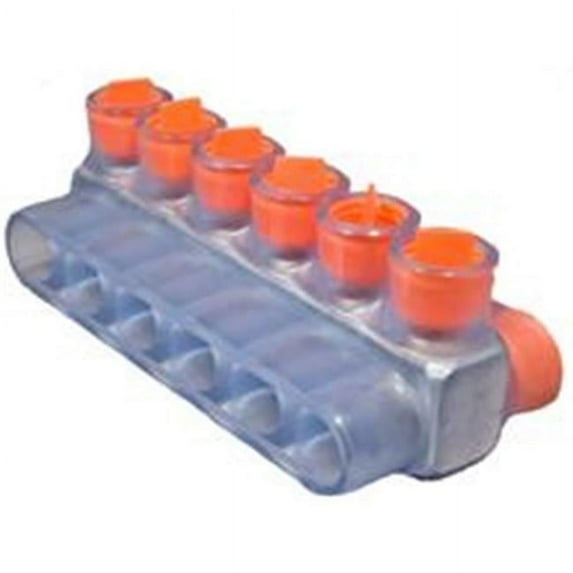

Clear Multi-Cable Connector - Dual Entry 6 Ports 250 - 6

Clear Multi-Cable Connector - Dual Entry 6 Ports 250 - 6 - With our Clear Dual Entry Connector, you'll see instant results.

• Wire entry from either side of clear connector.
• Insulated aluminum body eliminates the need for time consuming manual taping, removable plugs provide easy access for installation. Reduce installation time.
• An easy to install, worry-free solution for insulating splices, taps, & terminations in meter centers & other multiple connection applications; one wire per terminal.
• Multi-tap feature reduces the space needed for multiple installations.
• PVC insulation reduces the likelihood & cost of power outages caused by improper or inconsistent insulated connections done manually in the field.
• Clear insulation allows visual confirmation that conductor is properly inserted.
• Single piece molded insulation is chemical and abrasion resistant and operates in temperature range of -49°F to 194°F (-45° to 90°C).
• Clear dual entry connector is 6061 aluminum dual rated for use with copper and/or aluminum wires.
• Pre-filled with oxide inhibitor compound.
• ANSI C119.4 & UL 486b listed, Rated 600 volts.

• No. of Ports: 6.
• Wire Range: 250MCM - 6.
• Length: 6 in.
• Width: 2.63 in.
• Height: 2.13 in.
• Item weight - 0.8125 lbs.
