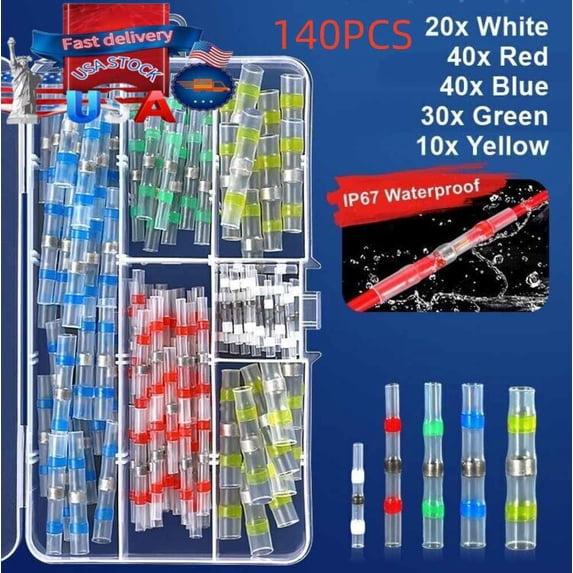

140Pcs Waterproof Solder Seal Sleeves Heat Shrink Butt Wire Connectors Terminals

Features:



An easy one step connection of wires.



Soldered, insulated and sealed can be ideal.



Use in marine and automobile applications.



Melt adhesive in inside solder and seal and with advanced waterproof function.



Polyolefin heat shrink butt connectors improved pullout strength.



Provide seal, strain relief, cable check and insulation.



Technical Specifications:



Shrinkage ratio 3:1



Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside



Color coded connector tubing



Heat activated waterproof adhesive



Low temperature solder sleeve



Minimum shrink temperature: 80°C



Minimum temperature for solder to melt: 138°C



Sizes and Quantity:



10x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0 - 6.0 mm² 12-10AWG



40x Blue Connectors: Diameter 4.5mm, Cable cross-section 1.5 - 2.5 mm² 16-14AWG



40x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5 -1.0 mm² 0.5-1.0AWG



20x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25 - 0.34 mm² 26-24AWG



30x Green Connectors:Cable cross-section1.0-1.5mm² 18-16AWG



Package Included:



140PCS Heat Shrink Solder Wire Connectors



Note:



Please allow 1-5mm errors due to manual measurement.



Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
