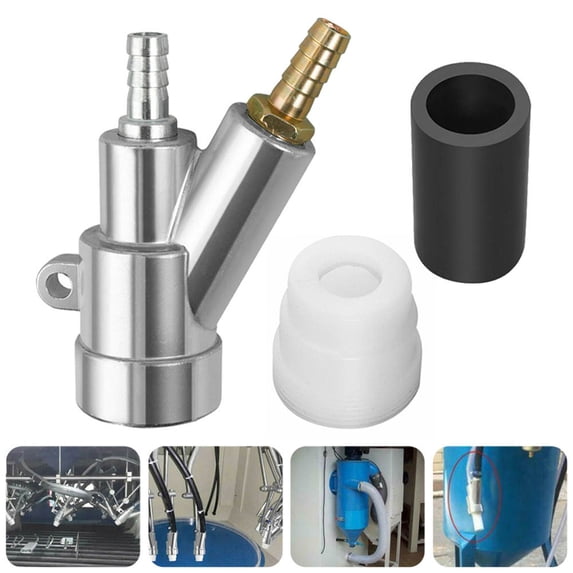

Sandblasters Accessories Stainless Steel with Boron Carbide Nozzle 35×20×8mm

Feature:

*According to the factory specifications.

*A blast nozzle accelerates the air and abrasive as the mixture exits the end of the hose.

*Easy installation.

*The taper and length of the nozzle's inlet and outlet determine the pattern and velocity of the abrasive exiting the nozzle.

*The composition of the liner material determines its resistance to wear.

Instructions for use:

1) The operator inserts the nozzle washer into a contractor-thread nozzle holder and screws in the nozzle, turning it by hand, until it seats firmly against the washer.

2) With all related equipment correctly assembled and tested, the operator points the nozzle at the to be cleaned and presses the remote control handle to begin blasting.

3) The operator holds the nozzle 18 to 36 inches from the and moves it smoothly at a rate that produces the desired cleanliness. Each pass should overlap slightly.

4) Once the orifice is worn more than 1/16" of its size, the operator must replace the nozzle.

Specification:

Product name: Sandblasters Accessories

Material: Aluminum alloy, Nylon, Boron Carbide

Color: As shown

Size: As pictures show

Internal nozzle diameter: 8mm(Approx. )

External nozzle diameter: 20mm

Length of the nozzle: 35mm

Suitable for: box manual sandblasting machine and box type automatic sandblasting machine

Quantity: 1Pc

Package Included:

1 x Air Sandblaster Head

1 x Boron Carbide Nozzle

Note:

1.Transition: 1cm=10mm=0.39inch.

2. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

3. Please allow slight manual measurement deviation for the data.
