Hero image 0 of American Zettler AZ9731-1C-12DC4 (2-Pack) Power Trim Tilt Relay for Mercury Outboard Motor, 0 of 2

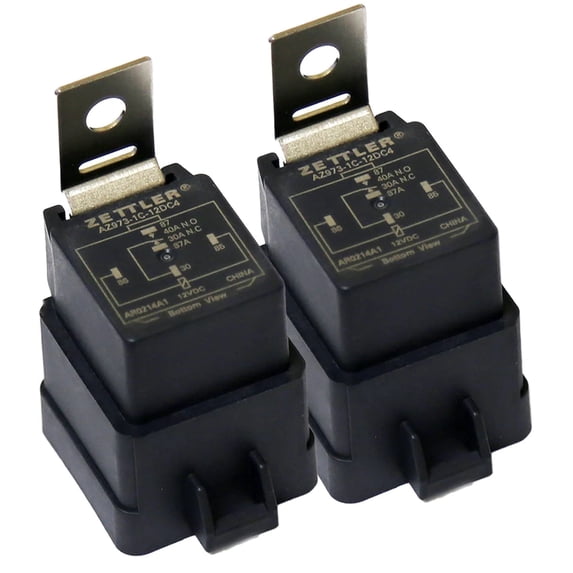

American Zettler AZ9731-1C-12DC4 (2-Pack) Power Trim Tilt Relay for Mercury Outboard Motor

(No ratings yet)

Key item features

High Capacity: 40AMP capacity for handling heavy loads with ease.
Versatile Configuration: Single-pole, double-throw (SPDT) configuration for different wiring needs.
Compact Design: Mini-ISO relay is space-saving and easy to install.
Durable Build: High operating temperature of up to 125°C and epoxy sealed versions available.
Quick Connect: Features quick connect terminals for easy installation.
Reliable Performance: Designed for automotive, industrial, and other demanding applications.
Quality Materials: Contact material made of Silver Tin Oxide for durability.
Precise Specifications: Operate time of 7 ms, coil voltage of 12 VDC, and dimensions of 5 x 46.5 x 67.3 mm.

Generated by AI

Specs

Amps
40 Amps
Input voltage
12 VDC
Electrical system relay type
Automotive
Brand
American Zettler
Size
1 Pair
Assembled product weight
0.16 oz

Current price is $18.00

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

AMERICAN ZETTLER AZ9731-1C-12DC4 40AMP Mini-ISO Automotive Relay 12VDC coil SPDT - 2 Pack

FEATURES:

• Quick connect terminals
• 40 Amp contact rating
• High operating temperature (125°C)
• Epoxy sealed versions available
• Plastic or steel mounting bracket available
• Resistor or diode parallel to coil available
• ISO/TS 16949, ISO14001

DESCRIPTION:

The AMERICAN ZETTLER part AZ9731-1C-12DC4 is a high-quality automotive relay designed for various applications. With a 40AMP capacity, it is capable of handling heavy loads with ease. The relay features a 12VDC coil, ensuring compatibility with most automotive electrical systems. Its single-pole, double-throw (SPDT) configuration provides versatility for different wiring needs. Compact in size, this mini-ISO relay is space-saving and easy to install. Whether you need it for automotive, industrial, or other demanding applications, the AZ9731-1C-12DC4 relay offers reliable performance and durability you can trust.

SPECIFICATIONS:

Supplier: American Zettler
Contact Form: SPDT (1 Form C)
Relay Construction: Non-Latching
Max Contact Current: 40A (NO) / 30A (NC)
Coil Voltage: 12 VDC
Coil Current: 33 mA
Coil Resistance: 90 Ohm
Contact Material: Silver Tin Oxide
Must Operate Voltage: 8 VDC
Must Release Voltage: 1.8 VDC
Operate Time: 7 ms
Seal: Sealed
Mounting: Bracket Mount
Termination Style: Quick Connect
Dimension: 5 x 46.5 x 67.3 mm
Operating Temperature: -40 to 125 °C

If your having problems with your power trim cutting out, only going in one direction, or simply not working at all, there is a good chance that you just need to change out your relays.
