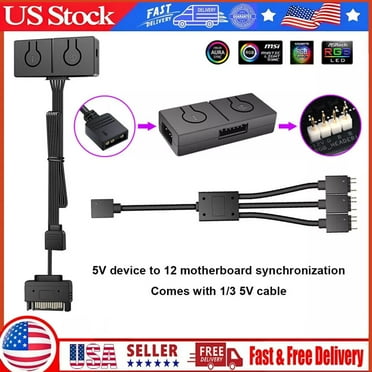

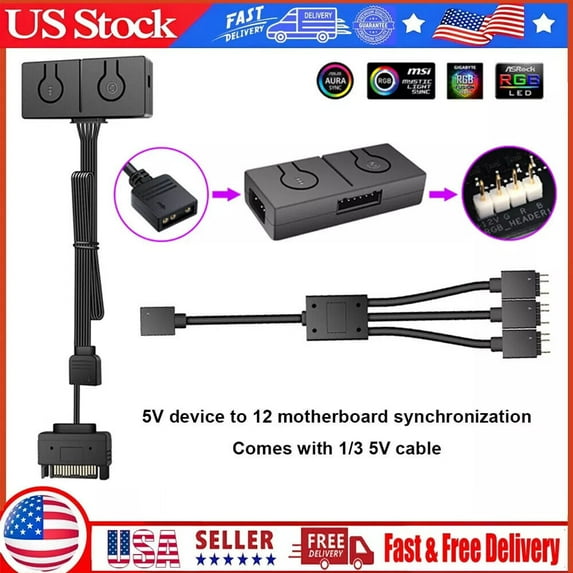

5V ARGB To 12V RGB Converter with 3-Way Splitter Sync with Motherboard Portable#

Feature:
1. Sync with Motherboard Lighting Control: Compatible with for A SUS, MSI, Gigabyte, ASRock motherboards (5V/3Pin D-RGB interface connected to a 12V/4Pin RGB interface). Through motherboard control, the lighting can synchronize with other RGB products, allowing 5V ARGB devices to be controlled by a 12V RGB motherboard, achieving synchronized color changes. It can also be controlled manually using the controller's buttons.
2. 5V ADD-RGB to 12V RGB Conversion: Convert 5V ADD-RGB devices to be compatible with 12V RGB motherboards. Achieve synchronization and compatibility between different lighting systems. The 12v rgb to 5v argb transfer hub can also be used as a manual controller, allowing you to control colors and change speeds using buttons. It can also be connected to the case's reboot button to control color changes.
3. Compatibility with Various RGB Interfaces: Compatible with major manufacturers' (for A SUS, Gigabyte, MSI) 3-pin RGB interfaces, ensuring excellent compatibility. Includes a 3-way splitter of 5v/3pin add-rgb to 12v /4pin rgb converter for expanding more ARGB devices.
4. Multiple Button Functions: M key - Built-in 50 color modes, long-press for three seconds to switch to motherboard sync mode; Fast Forward key - Controls the speed of color modes (Low/Medium/Fast); A 2-pin interface on the left side of the 5v to 12v rgb transfer hub allows connection to the case's reboot button to control external RGB devices connected to the converter. Long-press for three seconds to switch to motherboard control.
5. Important Notice: Can only sync with 12V RGB motherboards. The number of RGB signals varies slightly between different motherboards (12V RGB and 5V ARGB). On certain motherboards, some mixed RGB colors may not display correctly (e.g., orange, yellow), and the color transitions of LEDs may not be smooth in cycling color mode.
Specification:
Type: PWM Controller/HUB
Model Number: 12V RGB to 5V ARGB Transfer Hub
Package: Yes
Colour: Black
Material: ABS
Available Memory Slots: 2
Number of ports: 3
Supported system bus standard: SATA 3
Size: about 10cm
Weight: 65 grams

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Package included:

1 set RGB Converter
On Jun 5, 2024 at 12:38:55 PDT, seller added the following information:
