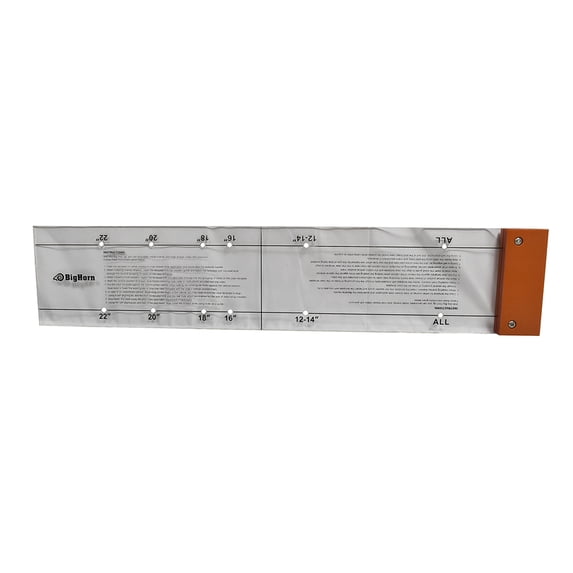

Big Horn 19652 Drawer Slide Jig

(No ratings yet)

Key item features

Eliminates guesswork in slide positioning by providing a visual template for accurately placing both front and rear mounting holes.
Supports both overlay and inset drawer fronts with clearly defined hole groupings for each applicationâjust choose the correct set based on your drawer style.
Ensures consistent alignment across multiple drawers with etched markers for standard slide lengths: 12", 14", 16", 18", 20", and 22".
Improves workflow and reduces measuring errors by showing exact drill points for each slide size, making repeat installations faster and more reliable.
Works on either side of the cabinet with mirrored markings on both sides of the clear acrylic template for ambidextrous use.
Holds firmly in place during setup with a reinforced plastic handle that sits flush against the outside of the cabinet while the jig template aligns inside.
Ideal for new builds and replacements in kitchen cabinets, vanities, shop drawers, and furniture projects where slide precision is critical.

Specs

Size
12"
Material
Plastic, Acrylic
Brand
Big Horn
Rec. use
Cabinets
Accessories
bolts
Piece count
1

Current price is $13.99

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

This jig has been designed to make quick work of accurately installing overlay and insert drawer slides. Just assemble the wood handle and clear template for one of the two applications. For overlay drawers, insert the template into the wood guide and fasten to the clear template with enclosed bolts.

Eliminates guesswork in slide positioning by providing a visual template for accurately placing both front and rear mounting holes.
Supports both overlay and inset drawer fronts with clearly defined hole groupings for each applicationâjust choose the correct set based on your drawer style.
Ensures consistent alignment across multiple drawers with etched markers for standard slide lengths: 12", 14", 16", 18", 20", and 22".
Improves workflow and reduces measuring errors by showing exact drill points for each slide size, making repeat installations faster and more reliable.
Works on either side of the cabinet with mirrored markings on both sides of the clear acrylic template for ambidextrous use.
Holds firmly in place during setup with a reinforced plastic handle that sits flush against the outside of the cabinet while the jig template aligns inside.
Ideal for new builds and replacements in kitchen cabinets, vanities, shop drawers, and furniture projects where slide precision is critical.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Size

12"

Material

Plastic, Acrylic

Brand

Big Horn

Compatibility

overlay and insert drawer slides
