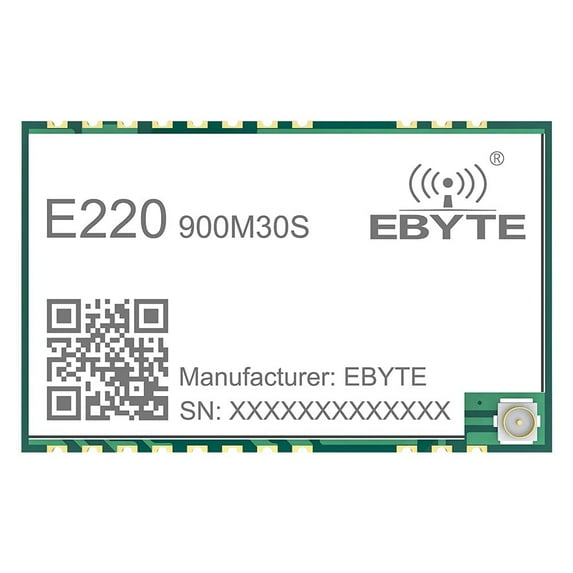

LLCC68 LoRa Wireless Module 868/915MHz E220-900M30S 30dBm Long Range 10km IPEX/Stamp Hole Antenna SMD SPI Wireless Module

[IC]LLCC68
[Frequency]850.125~930.125MHz
[Power]30dBm
[Distance]10km
[Size]38.5*24mm
[Introduction]?E220-900M30S is 1W module developed independently based on new generation of LoRa RF chip LLCC68 from Semtech. LLCC68 is suitable for 868MHz/915MHz SMD wireless module and uses industrial 32mhz crystal oscillator.

Features
Compared with the SX1276 module, the LLCC68 module has significant advantages of lower power consumption,
faster speed and longer distance;
The measured distance can reach 10km;
Built-in PA+LNA, greatly improving the communication distance and stability;
The maximum transmitting power is 1W, software is multi-level adjustable;
Support global license free ISM 868 / 915MHz band;
In LoRaTM mode, the data transmission rate is 1.76kbps ~ 62.5kbps;
FSK mode supports up to 300kbps data transmission rate;
FIFO has large capacity and supports 256 byte data cache;
Support spread spectrum factor SF5, SF6, SF7, SF8, SF9, SF10, SF11;
Support 3 ~ 5.5V power supply, more than 3.3V power supply can guarantee the best performance;
Industrial standard design, support - 40 ~ 85 ° C long-term use;
Dual RF interface is optional (IPEX / stamp hole), which is convenient for secondary development and integration
