Hero image 0 of 6613Lb/3000kg Pneumatic Punch Machine with Controller for Sheet Metal Plastic Processing, 0 of 13

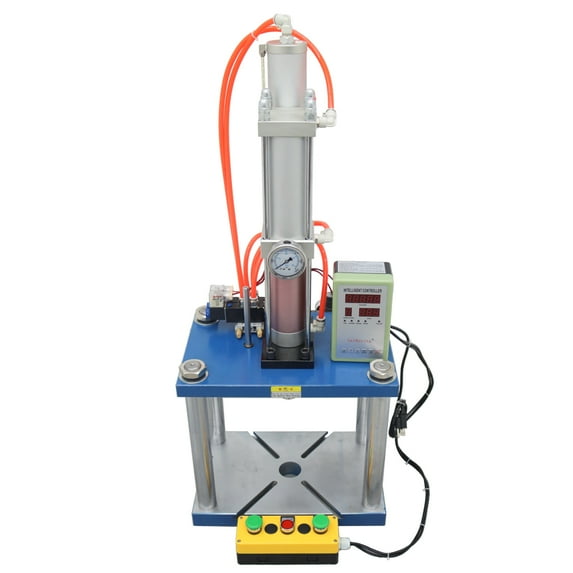

6613Lb/3000kg Pneumatic Punch Machine with Controller for Sheet Metal Plastic Processing

(No ratings yet)

Key item features

Pneumatic Punch Press Transfer Machine, microcomputer control system, can choose manual, semi- automatic and fully automatic operation.
Optional manual switch control, with emergency stop switch, can also be controlled by a controller.
Compressed air as power source, high efficiency and easy operation, can reduce labor, can be applied to manual operation integration, automated assembly line .
Simple structure, convenient operation, cheap price, superior performance, no noise produced during the hydraulic system and electric standby, can save electricity consumption reduce production cost, has the very high cost performance .
High Pressure Punch Machine, easy adjustment of output, need to adjust the air pressure is adjustable up to the required pressure, high yield .Equipped with guide plate, high accuracy, can adapt to high speed precision impact load .
According to different products or mould, adjust the speed, and the size of the pressure and stamping time .

Specs

Brand
Intbuying
Power type
Electric
Volts
110 V
Weight
185.6 lb

Current price is Now $1,427.86

You save $152.14

was $1,580.00

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $59.00

4-Year Plan - $77.00

How do you want your item?

Ships to

Arrives between May 30 - Jun 3

Sold and shipped by TOPSELLER INC.

4.3357933579335795 stars out of 5, based on 542 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Description
The pneumatic press is the high-pressure gas produced by the compressor, which is transported to the solenoid valve through the gas pipe. The working state of the cylinder is controlled by the movement of the solenoid valve through the switch, and the punching is completed.

Specification :
Voltage: 110V
Pressure: 6614lb/3000kg
The die hole diameter: 0.98inch/2.5cm
Working Countertops Size: 15.7*10.2inch/40*26cm
Outer diameter of trachea: 0.39inch/0.1cm
Booster cylinder specification: 3.94inch-0.39inch/100mm-10mm
Working air pressure: 0.5-0.8MPa

Range of application
Pressure pneumatic punch machine is suitable for electronics, electrical appliances, instruments, meters, cameras, watches, jewelry, hardware and garment, shoes and hats.

Machinable materials
For sheet, strip, coil to shear, punching, blanking, forming, bending, riveting, etc;Suitable for non-ferrous metal, plastic parts processing.

Note:
1. 46# antiwear hydraulic oil should be added to the hydraulic cylinder. It is recommended to replace the hydraulic oil after one year of use. (Due to ex-factory debugging, there will be a small amount of hydraulic oil in the machine, please prepare your own hydraulic oil after receiving the goods).
2.Check whether the machine bolts are tightened before working. If they are loose, they must be tightened before working. Check whether the air pipe is properly connected to prevent air leakage and make the machine unable to work normally.
3. Avoid placing your hand under the punching shaft during work to avoid accidents .
4.Do not wipe the machine with a damp cloth to avoid rusting the machine .
5.When disassembling, installing and adjusting the mold fixture, the machine must be turned off, and standby operation is strictly prohibited to avoid personal injury .
6.The rated pressure of the air compressor is 0.8mpa. The capacity of the air compressor storage tank is about 60L,the larger the capacity, the longer the service time and the more stable it is. The displacement is optional 200L/min, the larger the displacement, the larger the applicable machine model.
7.Note :The actual output pressure is about 80% of the theoretical pressure.

Item included: 230238-TopY
INTBUYING 6613Lb/3000kg Pneumatic Punch Machine with Controller for Sheet Metal Plastic Processing

Pneumatic Punch Press Transfer Machine, microcomputer control system, can choose manual, semi- automatic and fully automatic operation.
Optional manual switch control, with emergency stop switch, can also be controlled by a controller.
Compressed air as power source, high efficiency and easy operation, can reduce labor, can be applied to manual operation integration, automated assembly line .
Simple structure, convenient operation, cheap price, superior performance, no noise produced during the hydraulic system and electric standby, can save electricity consumption reduce production cost, has the very high cost performance .
High Pressure Punch Machine, easy adjustment of output, need to adjust the air pressure is adjustable up to the required pressure, high yield .Equipped with guide plate, high accuracy, can adapt to high speed precision impact load .
According to different products or mould, adjust the speed, and the size of the pressure and stamping time .
