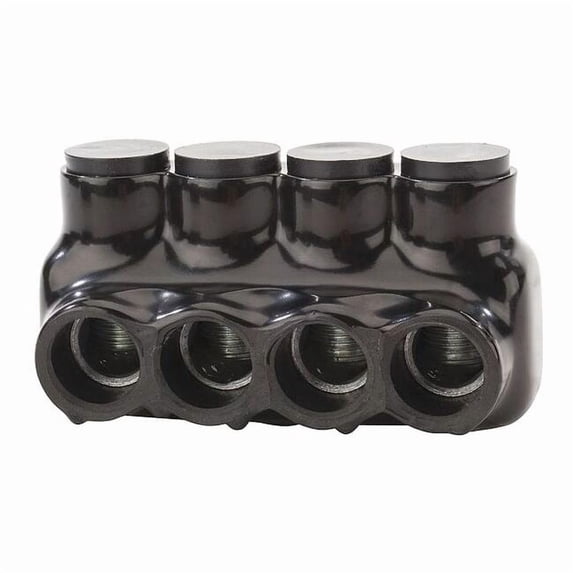

Hero image 0 of Insulated Multitap Connector,3.41 In. L IPL3/0-4B, 0 of 8

Insulated Multitap Connector,3.41 In. L IPL3/0-4B

(No ratings yet)

Key item features

Al Conductor Max Amp:175
Application:Wire Termination
Assortment:Black UV Coated Pre-Insulated Connectors
Body Material:Aluminum
Color:Black
Compatible with Product Type:Copper and Aluminum Cables
Env Temp:Cold Temperature rated to -45C
Environmental Conditions:90 C
Finish:Plastisol
For Conductor Material:Aluminum, Copper
For Stranded Copper Wire Size - Maximum:3/0 AWG
For Stranded Copper Wire Size - Minimum:6 AWG
Head Style:Hex
Hex Size:5/16 in
Hex Wrench Size:1/4
Insulation Material:Plastisol
Item:Insulated Multitap Connector
Length (Straight Wireway):3.41 in
Length:3.41 in
Material:Plastisol
Max. Conductor Si
Max. Voltage:600V AC/DC
Maximum Operating Temperature:194 Degrees F
Maximum Voltage:600 V
Min. Conductor Size:6 AWG
Minimum Operating Temperature:-49 Degrees F
No. of Ports:4
Number Of Conductors:4
Number of Ports:4
Overall Length:3.41 in
Overall Width:1.6 in
Standard:cULus
Standards:cULus, UL 486B
Strip Length:1 1/8 in
Stud Size:5/16 in
Tap Shape:L
Temp Rating:90C, AL9CU
Temperature Rating:90Â° C

Specs

Features
Insulated
Amps
175 Amps
Brand
Polaris
Color
Black
Pieces
1
Has nrtl listing certification
N

Current price is $65.10

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Sat, Jun 13

Sold and shipped by SIM Supply Inc

4.338223308883456 stars out of 5, based on 6135 seller reviews(4.3)

Free 30-day returns

About this item

Product details

Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 4, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486B

Al Conductor Max Amp:175
Application:Wire Termination
Assortment:Black UV Coated Pre-Insulated Connectors
Body Material:Aluminum
Color:Black
Compatible with Product Type:Copper and Aluminum Cables
Env Temp:Cold Temperature rated to -45C
Environmental Conditions:90 C
Finish:Plastisol
For Conductor Material:Aluminum, Copper
For Stranded Copper Wire Size - Maximum:3/0 AWG
For Stranded Copper Wire Size - Minimum:6 AWG
Head Style:Hex
Hex Size:5/16 in
Hex Wrench Size:1/4
Insulation Material:Plastisol
Item:Insulated Multitap Connector
Length (Straight Wireway):3.41 in
Length:3.41 in
Material:Plastisol
Max. Conductor Si
Max. Voltage:600V AC/DC
Maximum Operating Temperature:194 Degrees F
Maximum Voltage:600 V
Min. Conductor Size:6 AWG
Minimum Operating Temperature:-49 Degrees F
No. of Ports:4
Number Of Conductors:4
Number of Ports:4
Overall Length:3.41 in
Overall Width:1.6 in
Standard:cULus
Standards:cULus, UL 486B
Strip Length:1 1/8 in
Stud Size:5/16 in
Tap Shape:L
Temp Rating:90C, AL9CU
Temperature Rating:90Â° C
