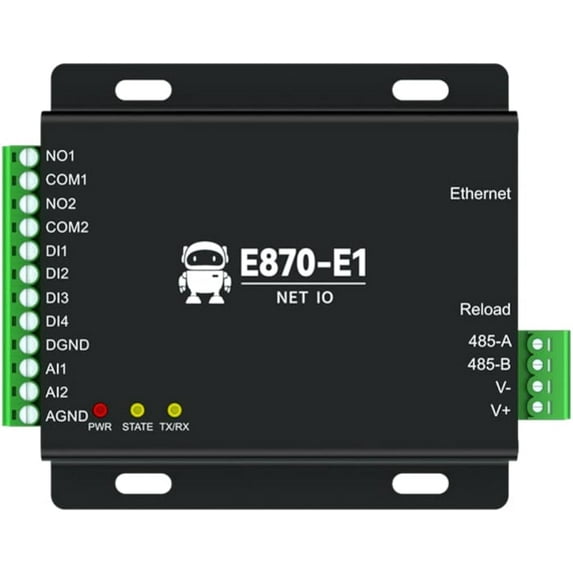

Ethernet Edge Acquisition Gateway IO Controller RS485+4DI+2DO+2AI E870-E1 Remote Control Modbus TCP RTU MQTT DNS
(No ratings yet)
Key item features
- Support "Ebyte" Cloud Device Communication Protocol" open protocol; Support remote management of Ebyte cloud platform Support edge acquisition and control 20 Modbus RTU data point
- Support change reporting, periodic reporting and other reporting methods; Supports adding edge computing formulas to upstream and downstream data; Support Alibaba Cloud IoT model JSON protocol reporting; Automatic 10/100M Ethernet interface
- Support 4-way Socket independent connection to user-defined server; Support TCPC, UDPC, MQTT3.1.1 protocol; Support registration package and heartbeat package; Support various configuration methods such as Ebyte cloud platform, host computer, network, etc.
- Support 4-way Socket independent connection to user-defined server; Support TCPC, UDPC, MQTT3.1.1 protocol; Support registration package and heartbeat package; Support various configuration methods such as Ebyte cloud platform, host computer, network, etc.
- Support as an RTU device to parse the host Modbus RTU command to collect and control the IO of the control device; Industrial design supports -40~85℃ working environment.
Specs
- BrandEBYTE
- Network switch typeEthernet Switch
- Number of ports4
- Model nameE870-E1
- LAN ports4
- Inputs/OutputsRS485+4DI+2DO+2AI
Current price is USD$39.99
Price when purchased online
- Free shipping
Free 30-day returns
Walmart Protection Plan by Allstate
(Only one option can be selected at a time)
How do you want your item?
Ships to
Arrives between Jun 2 - Jun 5
|
Sold and shipped by EBYTE IoT Application Expert
Free 30-day returns
About this item
Product details
Product Description[Transmission method]：Ethernet
[Working voltage]：DC8~28V
[Communication interface]：RS485
[Product size]：80*85mm
[Introduction]：E870-E1 is an Ethernet cloud I0 gateway developed based on the communication protocol "Ebyte Cloud Device Communication Protocol" developed by our company. It can send commands to the device through the server to achieve control or collection functions, and open 4-way switch value collection on the device. , 2-way analog (0-20/4-20mA) acquisition, 2-way A-type relay output, support multiple protocols (TCP, UDP, MQTT) access to the server, support heartbeat package, registration package settings; at the same time the product supports Multiple configuration methods, support web platform; support acquisition and control edge RTU nodes, can also be used as RTU equipment to analyze Modbus command acquisition and control equipment IO; adopt industrial design standards to ensure high reliability of equipment.
[Working voltage]：DC8~28V
[Communication interface]：RS485
[Product size]：80*85mm
[Introduction]：E870-E1 is an Ethernet cloud I0 gateway developed based on the communication protocol "Ebyte Cloud Device Communication Protocol" developed by our company. It can send commands to the device through the server to achieve control or collection functions, and open 4-way switch value collection on the device. , 2-way analog (0-20/4-20mA) acquisition, 2-way A-type relay output, support multiple protocols (TCP, UDP, MQTT) access to the server, support heartbeat package, registration package settings; at the same time the product supports Multiple configuration methods, support web platform; support acquisition and control edge RTU nodes, can also be used as RTU equipment to analyze Modbus command acquisition and control equipment IO; adopt industrial design standards to ensure high reliability of equipment.
- Support "Ebyte" Cloud Device Communication Protocol" open protocol; Support remote management of Ebyte cloud platform Support edge acquisition and control 20 Modbus RTU data point
- Support change reporting, periodic reporting and other reporting methods; Supports adding edge computing formulas to upstream and downstream data; Support Alibaba Cloud IoT model JSON protocol reporting; Automatic 10/100M Ethernet interface
- Support 4-way Socket independent connection to user-defined server; Support TCPC, UDPC, MQTT3.1.1 protocol; Support registration package and heartbeat package; Support various configuration methods such as Ebyte cloud platform, host computer, network, etc.
- Support 4-way Socket independent connection to user-defined server; Support TCPC, UDPC, MQTT3.1.1 protocol; Support registration package and heartbeat package; Support various configuration methods such as Ebyte cloud platform, host computer, network, etc.
- Support as an RTU device to parse the host Modbus RTU command to collect and control the IO of the control device; Industrial design supports -40~85℃ working environment.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
EBYTE
Network switch type
Ethernet Switch
Number of ports
4
Model name
E870-E1
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
