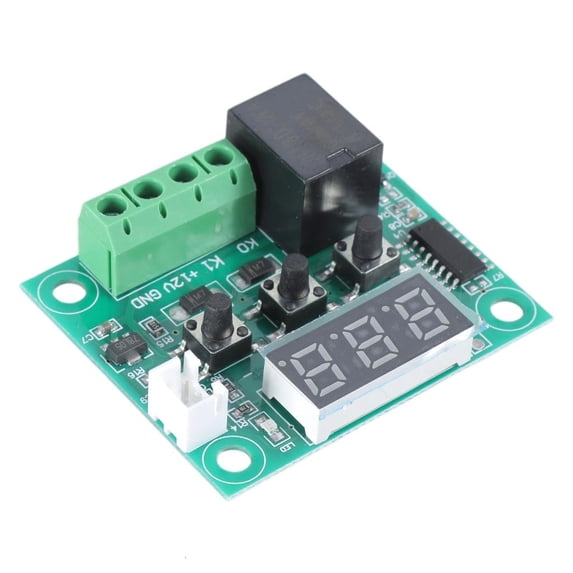

MOMOJIA -50-110°C XH-W1209 Mini Thermostat Temperature Controller Incubation Thermostat Temperature ControlSwitch Waterproof 12V

brand new and high quality
Quantity:1PC
Color: as picture show
Size: 48mm*40mm (L x for W)

Feature:
Temperature control range: -50 ~ 110 ℃
Resolution: 0.1 ℃ -9.9 to 99.9 when other temperature ranges 1 ℃
Temperature measurement accuracy: 0.1 ℃
Control accuracy: 0.1 ℃
Backlash accuracy: 0.1 ℃
Refresh rate: 0.5 S
Input Power: DC 12V
Measuring inputs: NTC (10K 0.5%) Waterproof sensor
Environmental requirements: -10 ~ 60 ℃ Humidity 20% -85%
Power consumption: Static current: ≤10MA pull current: ≤65MA
How to use
Connect the power supply and the load, you can supply to the controller
Is displayed as a measured temperature
Press the Set button , the display flashes the temperature
Press + - to see the desire temperature
After setting press set to confirm return
The controller automatically performs the relay by setting off !
Lights, LED status descriptions:
Indicator: Off the relay is switched off , for always indicate the relay is closed
LED: Shows LL is the sensor open, showing HH is of range, the thermostat will be forced to close the relay, the display---as high temperature for protection
Parameter Function:
Long press set 5 seconds to enter the main menu setting, press the + / -toggle PO ...PS long SET or 10 seconds of no for key activity confirmed their return to the controller

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
