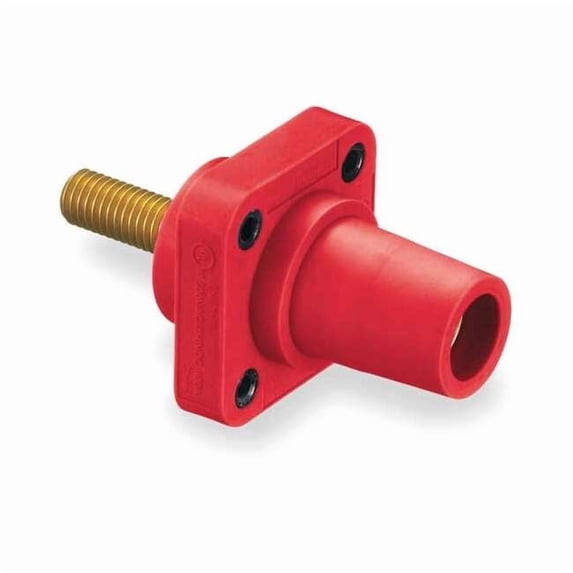

Hubbell Wiring Device-Kellems Receptacle,3R, 4X, 12K,Stud,Red HBLFRSR

The HUBBELL Receptacle, Series 16, is a single pole panel mount receptacle rated for high ampacity electrical connections. This female stud-type device accommodates #4 AWG to 4/0 AWG wire sizes and is rated for up to 400A at 600V AC or 250V DC. Constructed with a thermoplastic elastomer housing and brass contacts, it is intended for indoor installation where additional protection may be required.Key Features of the HUBBELL Series 16 Panel Mount Receptacle: Amperage Rating: Rated for up to 400A (AC/DC)Voltage Rating: Up to 600V AC / 250V DCConnection Type: Threaded stud terminal connection; straight orientationCable Accommodation: Accepts wire sizes from #4 AWG to 4/0 AWGHousing Material: Thermoplastic elastomer construction with brass conductor/contact materialNEMA Enclosure Ratings: Types 3R, 4X, and 12K—panel mount designMounting Style: Through hole mounting; square flange shapeStandards Compliance: ANSI/NFPA 70 (NEC), UL Listed, cUL Listed, UL Enclosure Types 3R/4X/12 compliant
