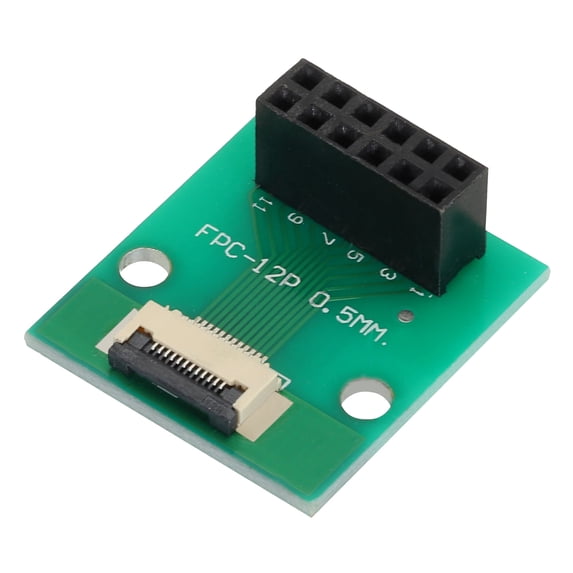

Uxcell FFC FPC Connector Board 12 Pin 0.5mm 2.54mm to 1.0mm 2.54mm TV PCB Converter Board

(No ratings yet)

Key item features

Uxcell FFC FPC Connector Board 12 Pin 0.5mm 2.54mm to 1.0mm 2.54mm TV PCB Converter Board
Board Type: Single Flat Cable Socket
Product Type: PCB Support
Pin Count: 12 Pins
FPC Socket Side Pitch: 0.5mm
FPC Back Side Pitch: 1.0mm
DIP Pitch: 2.54mm
Overall Size: 26x24x11.5MM / 1.0x0.94x0.45 inch(L*W*H)
In the package of: 1 x FPC/FFC Connector Board

Specs

Brand
Uxcell
Color
Green
Has written warranty
No
Dimensions
3.54 x 2.36 x 0.59 Inches

Current price is $8.69

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between Jun 1 - Jun 4

Sold and shipped by Tasharina Corp

4.074612403100775 stars out of 5, based on 31996 seller reviews(4.1)

Report an issue with this seller

Free 30-day returns

About this item

Product details

What is this?
FFC/FPC Connectors are used to connect flexible cables or flexible printed circuit boards in electronic equipment, to provide reliable electrical connection and mechanical fixation, and are suitable for applications requiring high flexibility and compact design. Mainly used in various digital communication products, portable electronic products, computer peripherals, measuring instruments, automotive electronics, and other areas, such as digital cameras, laptops, MP345, game consoles, etc.

Are there any advantages of the product?
1. It usually has the characteristics of low insertion force and a high rate number of insertion and extraction.
2. It can provide high-density signal transmission and circuit connection in a limited space.

How to use it?
1. Flip-up the black interface ; 2.Insert into your flat cable(here is not included); 3.Test to finish.

What should I notice?
All dimensions above are measured manually, please allow +/-0.1 inches error.

Uxcell FFC FPC Connector Board 12 Pin 0.5mm 2.54mm to 1.0mm 2.54mm TV PCB Converter Board
Board Type: Single Flat Cable Socket
Product Type: PCB Support
Pin Count: 12 Pins
FPC Socket Side Pitch: 0.5mm
FPC Back Side Pitch: 1.0mm
DIP Pitch: 2.54mm
Overall Size: 26x24x11.5MM / 1.0x0.94x0.45 inch(L*W*H)
In the package of: 1 x FPC/FFC Connector Board
