NYC Acoustics NC12S4 1600w 12" Car Audio LED Subwoofer+Vented Sub Box Enclosure
Key item features

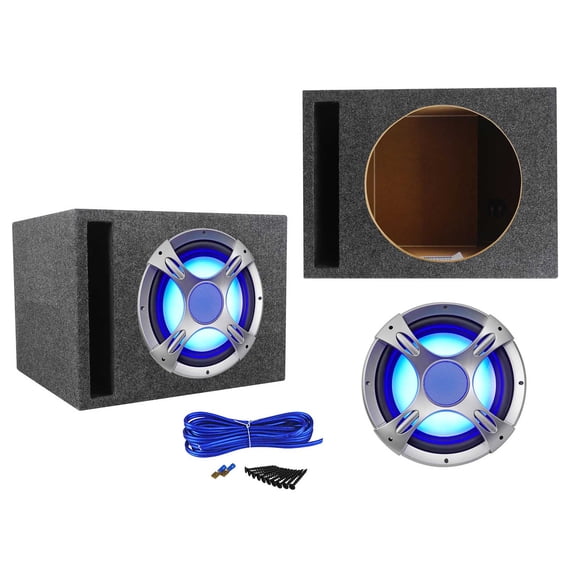

Package Includes:
(1) NYC Acoustics NC12S4 12" Car Audio Subwoofer with LED Sub Grille
(1) Rockville Single 12” 1.22 cu.ft. 3/4" MDF Vented Subwoofer Enclosure Box
10 Drywall Wood Screws (Wood screws are the type of screws; the screws areactually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals
Description for NYC Acoustics Sub:
The NC12S4 is one of the coolest subs on the market. It has a really cool LEDthat has 2 modes: a sound activated mode that goes to the beat of the music, anda constant mode.
The grille is awesome, but the sub is what is important! This sub is a rocksolid performing sub. It is powerful with 400 watts RMS power handling! It isenough power to make houses a block away from you shake as long as you are usinga good amp to power it. This sub has a 40 oz magnet, thick rubber surrounds toeliminate distortion, and 2” voice coils wound with 100 % copper wire!
The sound quality is incredible on these! They have a frequency range that isbetter than almost any sub on the market! This sub plays the low frequency deepbass notes loud and clear! What makes it even more unique is that it is capableof playing frequencies up to 1.2KHZ depending on how you set your crossover.
Features:
NYC Acoustics NC12S4 12" Car Subwoofer with LED grille
Power Handling: 1600 Watts Peak
Power Handling: 400 Watts RMS
LED grille has 2 settings that can either go to the beat of the music or stay asolid color
LED gets wired to the power terminal of your amplifier, which means there is noadditional wired you need to run
LED is multi colored (RGB)
LED On/Off switch
IMPP Cone
Thick Rubber Surrounds
IMPP Dustcap
Two Gold-Plated Push Terminals
Steel Basket
2" Voice Coils
4 Ohm Voice Coils
40 Oz Magnet
6mm T-Yoke + 6mm Washer
4-Layer Aluminum Voice Coils with 100% Copper Winding
Spider is made of a special polyester and cotton blend
Ultra Saturated, High BL Magnetic Motor Gap
Cutout Diameter: 11.06” inches
Mounting Depth: 5.5” inches
Frequency Response: 29HZ-1.2K HZ
Sensitivity: 86.5dB
Sealed Enclosure Volume: 1.0 – 1.75 Cubic Feet (1.09 Cubic Feet Optimal)
Vented/Ported Enclosure Volume: 1.3 – 2.0 Cubic Feet (1.5 Cubic Feet Optimal)
Weight: 8.95LBS
TS Parameters:
Le: 1.36 mH
Fs: 29 Hz
Re: 4 ohms
X-max 0.24”
Qts: 0.717
Qms: 4.149
Qes: 0.867
Vas: 3.16cf
Mms: 139g.
BL: 10.1 T-m
Gap Plate Inside Diameter: 55.5mm (2.18 inch)
Gap Plate Outside Diameter: 145mm (5.69 inches)
Gap Plate Thickness: 6mm (0.236 inches)
Yoke Outside Diameter: 145mm (5.69 inch)
Yoke Thickness: 6mm (0.236 inches)
Yoke Pole Diameter: 50mm (1.968 inches)
Owner’s Manual
Features of RSV12:
Rockville RSV12 Single 12" Vented Subwoofer Enclosure
Proudly Made In The USA, Using Only The Finest Quality Materials - For The BestLevel of Performance From Your Subs!
3/4" USA Heavy Duty MDF Construction
Enclosure Measurements:
Type of Enclosure: Vented
Enclosure Sub Size: Single 12"
Dimensions in Inches: 16.0" L x 18.0" W x 13.25 H"
Top and Bottom Depth: 16.0"
Mounting Depth: up to 14.75" (enough depth for any sub on the market)
Tuning Frequency: 38Hz
Port Dimensions: 2" x 21" x 12"
Gross Volume Per Sub (Measurement for the outer dimensions of the box): 1.50Cubic Feet
Net Volume Per Sub (Measurement for the outer dimensions of the box less thethickness of the wood and port): 1.22 Cubic Feet
Specs
