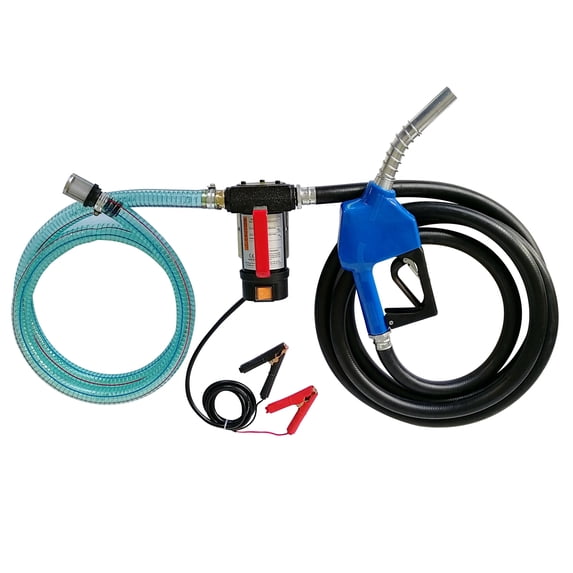

Homitt Commercial 12V 155W Electric Fuel Transfer Pump Diesel Oil Meter w/ Hose Nozzle

Specifications

Voltage: 12V

Power: 0.21HP / 155W

Speed: 3600 R/min

Inlet diameter: 25mm

Outlet diameter: 25mm

Output flowing: 45L/min

Max Suction: 16.4ft / 5m

Max Lift: 32.8ft / 10m

Cable Length: 5ft / 1.6m

Max Working Pressure: 3 Bar

Environment condition

Temperature: -25℃-- +55℃

Relative Humidity : 30%--90%

High atmospheric pressure : 86Kpa--106Kpa

Operation Instructions

1.Connect all spare parts correctly and ensure outlet connections are in proper placement.

2. Apply power to the motor by plugging the power cord into a power source. Turn on the pump by use of the on off switch.

3. Open the fueling nozzle to fuel equipment.

4. When fueling is complete, return the nozzle to its storage position and n turn off the pump.

A Package Included:

1 x Electric oil Pump

1 x Fuel Filter

2 x Hose Fitting

3 x Inlet Hose Fixing Circles

1 x Fastener Kit

B Package Included:

1 x Electric oil Pump

1 x Clear Suction Hose

1 x Rubber Deliver Hose

1 x Automatic Nozzle

1 x Fuel Filter

3 x Inlet Hose Fixing Circles

Attention:

1. Reset the meter to 0 before each use to ensure proper measuring of each fueling Job.

2. Do not leave the motor running when not in operation. Only interval runs between fueling jobs may be permitted.

3. Clean the fuel strainer regularly.
