Hero image 0 of 3.5 Inch Phenolic Wheel Swivel 3/4 Inch Threaded Stem Caster Set 2 Brakes SCC, 0 of 2

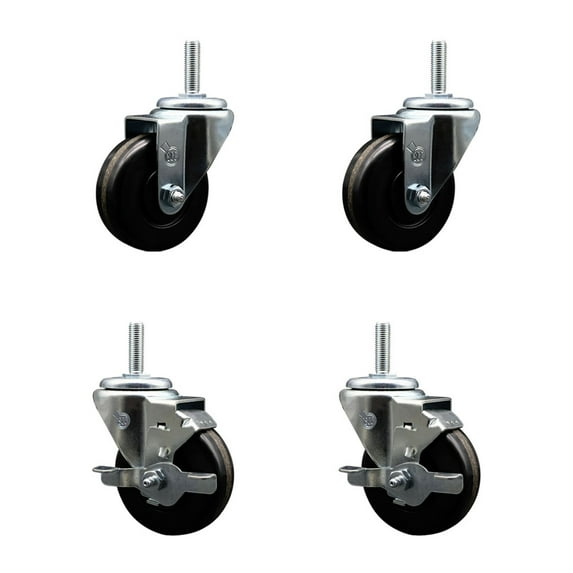

3.5 Inch Phenolic Wheel Swivel 3/4 Inch Threaded Stem Caster Set 2 Brakes SCC

(No ratings yet)

Actual Color:4 Swivel w/2 Top Lock Brakes-Out of stock

Key item features

These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
Weight Capacity: 3", 4", 5", and 6": 300 lbs Capacity/Caster
All casters feature a 3/4" diameter (10 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

Specs

Size
3.5" Wheel
Material
Phenolic
Brand
Service Caster
Weight
5.9 lb
Has casters
N
Has written warranty
No

Current price is $131.90

Price when purchased online

Selected option out of stock

More options available

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) swivel 3/4" threaded stem with brake casters and two (2) swivel casters, with 3-1/2" diameter by 1-1/4” wide phenolic wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 phenolic casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
Weight Capacity: 3", 4", 5", and 6": 300 lbs Capacity/Caster
All casters feature a 3/4" diameter (10 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Size

3.5" Wheel

Material

Phenolic

Brand

Service Caster

Color

4 Swivel w/2 Top Lock Brakes
