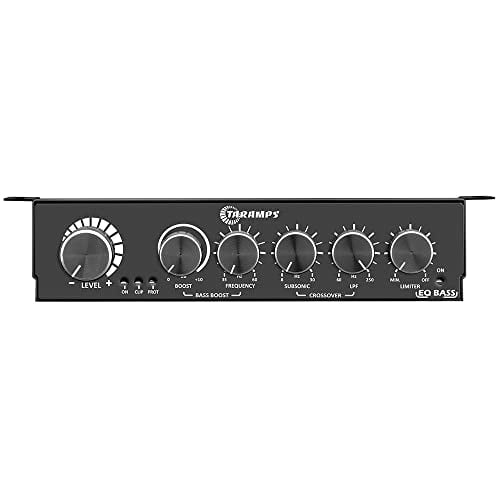

TARAMPS EQ BASS

Name: TARAMPS EQ BASS
Brand: Taramps
SKU: 2635208270
Price: 31 USD
Availability: OutOfStock
Rating: 1 (2 reviews)

|2 ratings

Key item features

Bass Control: The EQ Bass allows for comprehensive control over bass volume and amplifier settings, providing full command of the sound system.
Input/Output Connectivity: Features RCA input for connecting to CD/DVD players and RCA output for transmitting the equalized audio signal to an amplifier.
Adjustable Sensitivity: Includes a LEVEL adjustment for input sensitivity, enabling perfect matching with output signal levels from various CD/DVD head units, supporting up to 3V input.
Frequency Filtering: Incorporates a variable SUBSONIC FILTER (HPF) from 8Hz to 30Hz and a LOW PASS FILTER (LPF) from 60Hz to 250Hz for precise frequency control.
Power Specifications: Operates within a power supply voltage range of 9V to 16VDC, with a rated consumption of 151mA at 12.6V.
Technical Performance: Offers a frequency response from 10Hz to 250Hz and a signal-to-noise ratio greater than 100dB.
Compact Design: Weighs 0.79lb (0.360Kg), making it a lightweight addition to an audio setup.

Generated by AI

Specs

Brand
Taramps
Input/output type
RCA
Rec. use
Car Audio
Size
0.79 lbs
Color
Black
Signal-to-noise ratio
100 dB

Current price is $31.00

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

"TARAMPS EQBASS Digital Audio for Control Your Bass Volume, with RCA Output / Input, Perfect Match The Output Signal Levels of virtually al Models of CD/DVD Head Units, Frequency Response to 250HZ. Description :: Have you ever thought about having all your amp settings at your fingertips? If so, Taramps has something hot for you now! The EQ Bass. Now you can control your bass volume AND all your amplifier settings in one single product, granting you with a full control of your sound system. *This product comes with led monitoring cable.* TECHNICAL INFORMATION :: * FREQUENCY RESPONSE : 10Hz to 250Hz * SIGNAL TO NOISE RATIO : >100dB * POWER SUPPLY VOLTAGE (POWER) : 9V to 16VDC * WEIGHT : 0.79lb (0.360Kg) * EAN : 7898556849111 ADDITIONAL INFORMATION :: * Rated Consumption (On): 151mA@12.6V * Maximum Signal Input: 3Vac * Limiter: 0dB to -27dB * Boost: +10dB NEGATIVE POWER TERMINAL: Use the shortest possible 1.5mm cable, connected to the negative pole of the battery. REMOTE TERMINAL: It must be connected to the remote output of the CD/DVD player using a 0.75mm (18 AWG) cable. POSITIVE POWER TERMINAL: Use a 1.5mm ( 16 AWG) cable straight from the positive terminal of the battery with fuse or circuit breaker (1A) as close as possible to the battery. OUTPUT: Audio signal output. It transmits the signal to the amplifier after passing through the equalizers. INPUT: Signal input to be equalized. Connect it to the CD/DVD Player's RCA output, using a good-quality shielded cable to avoid noise pickup. "

NEGATIVE POWER TERMINAL: Use the shortest possible 1.5mm cable, connected to the negative pole of the battery.
REMOTE TERMINAL: It must be connected to the remote output of the CD/DVD player using a 0.75mm (18 AWG) cable.
POSITIVE POWER TERMINAL: Use a 1.5mm ( 16 AWG) cable straight from the positive terminal of the battery with fuse or circuit breaker (1A) as close as possible to the battery.
OUTPUT: Audio signal output. It transmits the signal to the amplifier after passing through the equalizers.
INPUT: Signal input to be equalized. Connect it to the CD/DVD Player's RCA output, using a good quality shielded cable to avoid noise pickup.
LEVEL: Adjusts the input sensitivity of the BASS EQ, which allows for a perfect match the output signal levels of virtually all models of CD/DVD head units on the market. Even 3V input is possible
SUBSONIC FILTER (HPF): Variable adjustment from 8Hz to 30Hz, which determines the beginning of the amplifier's operating frequency
LOW PASS FILTER (LPF):Variable adjustment from 60Hz to 250Hz, which determines the end of the amplifier's operating frequency.
