Pressure Gauge PCE-PDA 1000L

Name: Pressure Gauge PCE-PDA 1000L
Brand: PCE Instruments
SKU: 231897794
Price: 1117 USD
Availability: InStock

(No ratings yet)

Key item features

- Pressure measuring range: -100 ... 2000 kPa relative
- Resolution: 0.01 kPa, 0.1 kPa
- Accuracy: <± 0.5% of the measuring range
- Nominal pressure: 2000 kPa
- Overpressure: 2000 kPa
- Burst pressure: 3000 kPa
- Media: Liquids, Air, Non-explosive gasses
- Measuring rate: 10 Hz - Measurement units (adjustable): Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
- Principle: Relative pressure
- Pressure connections: 5 mm (0.2 in) nipple for quick connection
- Max, min and hold functions: Yes
- Data logger:
1024 memory slots
1 s ... 255 h recording time per memory location
1 s ... 24 h recording interval
- Medium: For air and non-explosive gases
- Zero correction: Yes, with a zero key
- Averaging: Yes, between 0.1 ... 9.9 s

- Graphic LCD
- USB interface
- Data logger
- Relative pressure and vacuum measurement
- Adjustable measuring units
- MAX MIN HOLD functions
- Measured value smoothing
- Integrated temperature measurement

Specs

Display
LCD
Brand
PCE Instruments
Features
Adjustable
Power type
Battery
Material
ABS
Color
Black

Current price is $1,117.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Sat, May 30

Sold and shipped by PCE Instruments

Free 30-day returns

About this item

Product details

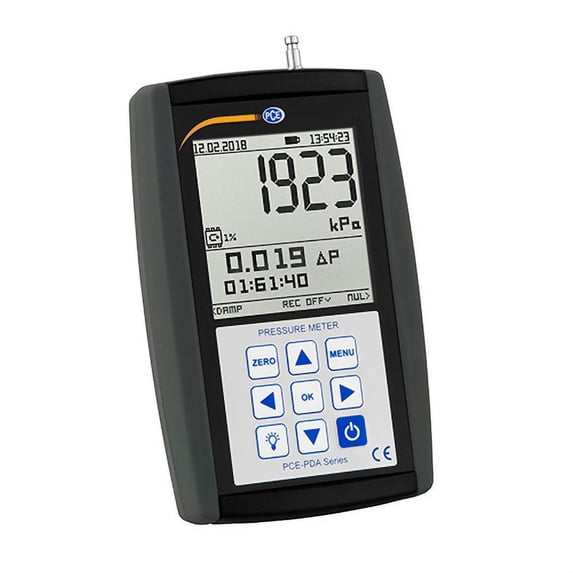

The relative pressure gauge PCE-PDA 1000L measures the relative pressure on machines and systems. The relative pressure is measured by this pressure gauge in the range between -100 ... 2000 kPa. The relative pressure gauge has a quick coupling connection with which the air pressure or water pressure can be directly applied to the device. In addition to the measurement in kPa, many other pressure units are available to the user. The large LCD on the relative pressure gauge continuously visualizes the measured values. It is also possible to freeze the maximum or minimum measured value in the display via the Max-Min-Hold function. Likewise, the relative pressure gauge in the second display area optionally displays the system temperature or a pressure difference if a leak test has been carried out. The PCE-PDA 1000L relative pressure gauge has a data logger. The memory has 1024 memory locations. Recordings of up to 255h can be stored in each memory location. To evaluate the stored measured values, software is available to the relative pressure gauge. The pressure gauge for relative pressure is supplied by 2 AA batteries. Here the user can either use batteries or rechargeable batteries. In battery operation, the relative pressure gauge PCE-PDA 1000L can be charged via a micro USB port.
