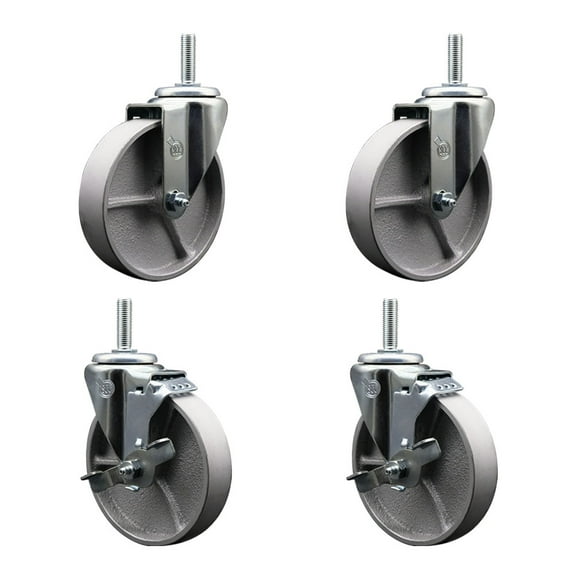

5 Inch Semi Steel Wheel Swivel 5/8 Inch Threaded Stem Caster Set 2 Brakes SCC

(No ratings yet)

Actual Color:4 Swivel w/2 Top Lock Brakes

Key item features

These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster
All casters feature a 5/8" diameter (11 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

Specs

Size
5" Wheel
Caster type
Swivel Casters
Material
Semi Steel Cast Iron
Features
Swivel
Brand
Service Caster
Rec. use
General

Current price is $170.85

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Sat, Jun 13

Sold and shipped by Service Caster CorporationPro Seller

4.642857142857143 stars out of 5, based on 14 seller reviews(4.6)

Report an issue with this seller

Free 30-day returns

More seller options (2)

Starting from $179.82

About this item

Product details

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) swivel 5/8" threaded stem with brake casters and two (2) swivel casters, with 5" diameter by 1-1/2” wide semi steel cast iron wheels. Supports a total weight of 1,200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 roller bearing semi-steel cast iron casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the semi-steel wheels are abrasion resistant and rugged, maintaining effortless rolling under heavier loads, and provides a cost-effective solution over steel wheels. The roller bearing is capable of carrying greater loads while also providing smoother rolling motion. It has a split outer race shell into which the roller assembly is inserted. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction (Note: roller bearing must be used with hardened spanner bushing or hardened shaft). Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster
All casters feature a 5/8" diameter (11 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Size

5" Wheel

Caster type

Swivel Casters

Material

Semi Steel Cast Iron

Features

Swivel
