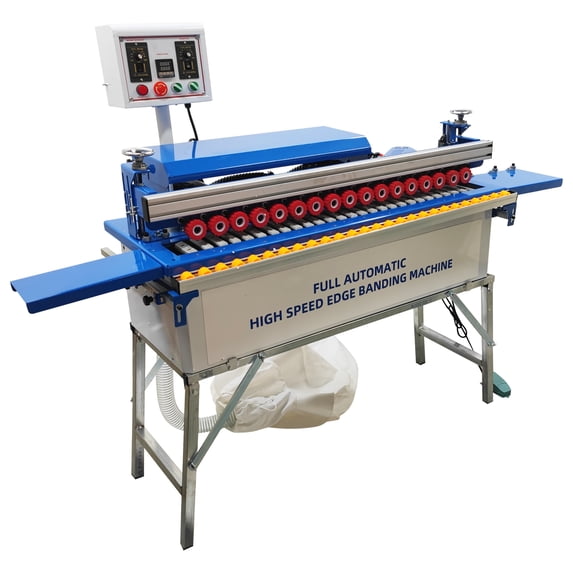

Woodworking Edge Bander Automatic Straight and Curved Edge Banding Machine Adjustable Speed 0-6m/min 110V
Key item features
- Intuitive Operation Panel: Independent panel controls temperature, feeding speed and functions with digital display. One-button start enables independent, easy and efficient edge banding operation.
- Dual-Function Edge Banding: Equipped with straight and curved edge mechanisms. Handles boards of different shapes, meeting various edge banding needs and boosting adaptability.
- Precise Press & Adjustment: Double-row press wheels ensure stable plate conveying. Handwheel with clear scales adjusts press beam height accurately for different plate specifications.
- Efficient Gluing & Polishing: Large-capacity adhesive pot delivers smooth, uniform coating. High-speed polishing wheel creates neat, safe edges after banding.
- Convenient & Clean Design: Foot switch frees hands, reducing labor intensity. Built-in vacuum cleaner with dust bag keeps the working environment clean and safe.
Specs
- Woodworking router typeNo
- BrandWYDDDARY
- Is variable speedN
- Power typeCorded Electric
- Free shipping
Free 30-day returns
(Only one option can be selected at a time)
How do you want your item?
About this item
Product details
Description:
The automatic edge banding machine is highly automatic and highly efficient woodworking machinery, is mainly used for sticking the edge band to the straight and curved edges of boards automatically, continuously and firmly, integrates the functions of automatic plate feeding, straight and curved edge banding, double-sided gluing, automatic band cutting, automatic end-to-end alignment, top and bottom trimming and double-sided polishing, and achieves intelligent edge banding operation. It is an ideal choice for the woodworking industry and the plate processing industry.
Parameter:
Voltage：110V
Edge speed：0-6m/min
Self-propelled motor power：60W
Conveyor motor power：25W
Polishing motor power：400W
Edge cutting machine power：800W
Edge thickness：0.8-1.5mm
Edge height：12-40mm
Heating time：5-15min
Adhesive volume：600ml
Trimming method：Double-sided trimming
Adhesion method：Double-sided adhesive coating
Control mode：Intelligent temperature control
Disconnection mode：Automatic band breaking
Attention:
1. Ensure that there are sufficient appropriate adhesives in the adhesive pot.
2. Be sure to conduct trial edge banding before normal production.
3. Please immediately press the emergency stop switch if there is material jamming, abnormal noise, smoking or odor.
4. Do not put hands into the machine during operation.
5. Use special tools to remove the stuck materials.
6. Regularly clean the residual adhesives, dust and other things with special tools.
7. Start edge banding only after the temperature reaches the set temperature.
8. When the machine is heating, do not put your hand into the edge strip groove to avoid burns.
9. During use, do not set the moving speed of the micro edge banding machine too fast or too slow. It should be controlled within an appropriate range.
Operation Method:
1. Fix the machine to the horizontal position firmly and stably.
2. Connect the machine to the 110V power supply, and pay attention to connecting the ground wire.
3. Add the appropriate amount of hot melt glue to the glue pot.
4. Place the edge banding strip and adjust the height limit column.
5. Adjust and lock the fitting wheel as needed.
6. Set the temperature through the temperature controller, adjust the motor speeds through the motor speed regulators, and start the motors after the temperature reaches the set temperature.
7. Press the foot switch, turn on the start switches, place the board on the chain conveyor belt or the rolling ball plate, and push the board to be subjected to the straight/curved edge banding, trimming and polishing operation.
Application:
1.Suitable for side sealing: flexible melamine-impregnated paper, wood veneer, plastic and other furniture edge sealing materials, the rubber surface must be smooth.
2.Plastic side banding strip: must be coated with hot melt adhesive when heated without deformation. Plastic side tape, the coated surface must be pre-coated with back adhesive (can make the back side tape and hot melt adhesive activator).
3.Suitable for hot melt adhesives: medium and low temperature hot melt adhesives with melting point below 120℃-170℃.
4.Suitable for the workpiece frame: can be bonded with hot melt wood, flower board, medium fiber board, particle board and other plate frames.
Item Included(033368):
1 x Automatic Edge Banding Machine 110V
- Intuitive Operation Panel: Independent panel controls temperature, feeding speed and functions with digital display. One-button start enables independent, easy and efficient edge banding operation.
- Dual-Function Edge Banding: Equipped with straight and curved edge mechanisms. Handles boards of different shapes, meeting various edge banding needs and boosting adaptability.
- Precise Press & Adjustment: Double-row press wheels ensure stable plate conveying. Handwheel with clear scales adjusts press beam height accurately for different plate specifications.
- Efficient Gluing & Polishing: Large-capacity adhesive pot delivers smooth, uniform coating. High-speed polishing wheel creates neat, safe edges after banding.
- Convenient & Clean Design: Foot switch frees hands, reducing labor intensity. Built-in vacuum cleaner with dust bag keeps the working environment clean and safe.
