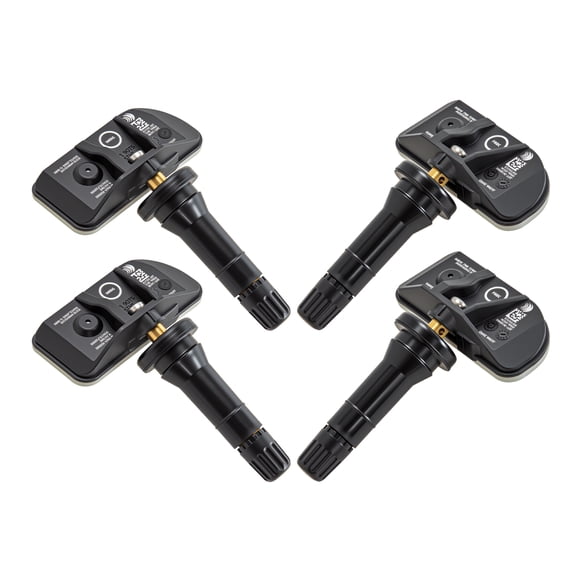

RXTSQI 4x Pre-Programmed TPMS JX7Z-1A189-C for Ford Explorer Escape 2020-2023

New 4x Tire Pressure Sensor For 20-23 Ford Escape Lincoln JX7Z-1A189-C TPMS-60

Product Description:
-- Set of (4) 315 MHz & 433MHz Tire Pressure Sensors (TPMS)
-- Part Number: JX7T-1A180-AA, JX7Z-1A189-C, TPMS60
-- Condition: Brand New , Generic Packaging
-- Other Info: 315MHz & 433MHz Dual Frequency

This item will fit the following vehicles / applications:
🚗FOR 2020 Ford Escape
🚗FOR 2020 Ford Explorer
🚗FOR 2020 Ford Police Interceptor Utility
🚗FOR 2020 Ford Transit 150
🚗FOR 2020 Ford Transit 250
🚗FOR 2020 Ford Transit 350
🚗FOR 2020 Lincoln Aviator
🚗FOR 2020 Lincoln Corsair

Package Include:
4x JX7T-1A180-AA TPMS(Tire Pressure Monitoring Sensor)

Optimized Installation Process:
1.Deflate the Tire:
Remove the valve cap and core to fully deflate the tire.
2.Dismount the Tire:
Secure the tire onto the tire changer and position the valve at the 1 o’clock position relative to the tire separation head. Use a tire tool to lift the bead over the mounting head and dismount the tire.
3.Remove the Sensor:
Using a screwdriver, remove the fastening screw and sensor from the valve stem. Then loosen the nut and completely remove the valve.
4.Install the Sensor and Valve:
Insert the valve stem through the valve hole on the rim. Secure the screw-nut with a torque of 4.0 Nm using a positioning pin for alignment. Attach the sensor body against the rim and tighten the mounting screw.
5.Mount the Tire:
Position the tire onto the rim, ensuring the valve is oriented 180 degrees opposite the separation head. Carefully seat the tire bead over the rim edge.
