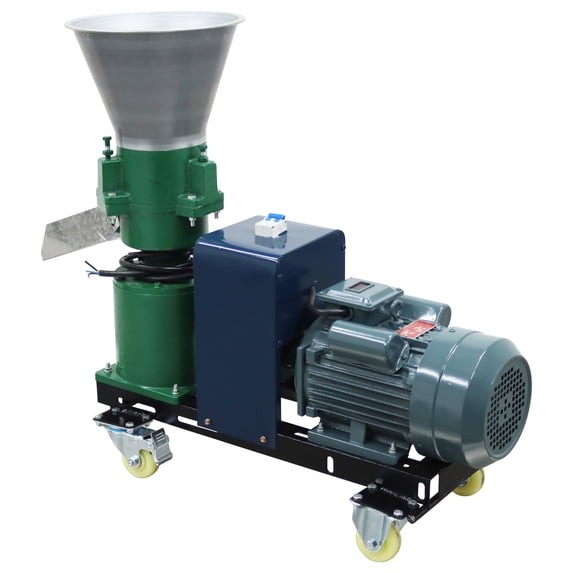

6MM Animal Feed Pellet Mill Machine Feed Granulator Three-head Pressure Roller 220V 4.5kw
(No ratings yet)
Key item features
- 【Specification parameters】 220V single-phase power, 4.5KW power, 6MM pressure plate, output per hour 120-150KG, and the particle length can be flexibly adjusted.
- 【Practical design】 Enlarged feeding port and widened discharging port, convenient feeding, anti-splash and easy collection. Equipped with voltage display and air switch, it comes with 2 brake wheels and 2 without brake wheels, ensuring safe use and flexible movement.
- 【Core functions】 Directly process corn pellets, kill microorganisms and parasites during the extrusion process, the feed is smooth and has moderate hardness, with small temperature changes during processing, complete nutrient retention, and improve the problems of poor palatability and low utilization rate of powdered feed.
- 【Material and advantages】The cast iron body is sturdy and durable. The three-head pressure roller operates stably. The pressure plate is detachable. The structure is simple, occupies a small area, and has low noise. Lubricating grease needs to be added regularly to extend the service life of the machine.
- 【Applicable scenarios】 Suitable for large, medium and small breeding sites, feed processing plants and individual farmers. Specifically designed for the chicken industry, it can be used alone or in combination with a hay cutter to enhance processing efficiency.
Specs
- BrandWYDDDARY
- Height31.5 in
- Volts220 V
- Weight182.98 lb
More seller options (1)
Starting from $1,149.00
About this item
Product details
Description:
Feed granulator is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms, individual farmers, small and medium-sized farms and large, medium and small feed processing plants.
This machine can be used alone, and customers who need it can also match it with a straw cutter for better results.
Product Parameters:
Pressure plate: 6MM
Output/h：120-150KG
Power: 4.5KW
Voltage: 220V Single-phase electricity
Product body material: Cast iron
Standard pressure roller: Three head press roller
Product size: 27.5*13.6*31.5in(70*34.5*80cm)
Notes:
1.Before using the machine, it is necessary to adjust the screw of the pressure roller to the appropriate position. The pressure roller and the pressure plate should be closely combined, and the two adjusting screws should be on the same horizontal plane.
2.Please refuel the fuel tank before using the machine. The machine should not idle for more than 2 minutes.
3.Double-check the belt and the screws before operation.
4.After using the machine, clean up the rest to prevent damage to the machine.
5.If the pressure roller cannot rotate normally, please tighten the screws that control the pressure roller first, and then try to power it on. If it still does not work, you can appropriately loosen the screws next to the pressure roller and then tighten them slightly again (without special tightening)
6.We suggest that high-power machines should be directly connected to the main power supply, as the voltage reaching the machine is stable. If the voltage is unstable and the current exceeds the rated current of the motor, it is easy to burn out the starting capacitor.
7.It is recommended to directly connect the machine to the power supply as much as possible. If the machine is not connected to the power supply, different situations may occur, and the wires are not durable. The wires will gradually burn out over time.
8.Our machine is not equipped with a plug. If you do not know how to operate the wiring , you can contact our customer service and we will provide you with the wiring video.
Item Included(239670):
1*Animal Feed Pellet Mill Machine 220V
Feed granulator is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms, individual farmers, small and medium-sized farms and large, medium and small feed processing plants.
This machine can be used alone, and customers who need it can also match it with a straw cutter for better results.
Product Parameters:
Pressure plate: 6MM
Output/h：120-150KG
Power: 4.5KW
Voltage: 220V Single-phase electricity
Product body material: Cast iron
Standard pressure roller: Three head press roller
Product size: 27.5*13.6*31.5in(70*34.5*80cm)
Notes:
1.Before using the machine, it is necessary to adjust the screw of the pressure roller to the appropriate position. The pressure roller and the pressure plate should be closely combined, and the two adjusting screws should be on the same horizontal plane.
2.Please refuel the fuel tank before using the machine. The machine should not idle for more than 2 minutes.
3.Double-check the belt and the screws before operation.
4.After using the machine, clean up the rest to prevent damage to the machine.
5.If the pressure roller cannot rotate normally, please tighten the screws that control the pressure roller first, and then try to power it on. If it still does not work, you can appropriately loosen the screws next to the pressure roller and then tighten them slightly again (without special tightening)
6.We suggest that high-power machines should be directly connected to the main power supply, as the voltage reaching the machine is stable. If the voltage is unstable and the current exceeds the rated current of the motor, it is easy to burn out the starting capacitor.
7.It is recommended to directly connect the machine to the power supply as much as possible. If the machine is not connected to the power supply, different situations may occur, and the wires are not durable. The wires will gradually burn out over time.
8.Our machine is not equipped with a plug. If you do not know how to operate the wiring , you can contact our customer service and we will provide you with the wiring video.
Item Included(239670):
1*Animal Feed Pellet Mill Machine 220V
- 【Specification parameters】 220V single-phase power, 4.5KW power, 6MM pressure plate, output per hour 120-150KG, and the particle length can be flexibly adjusted.
- 【Practical design】 Enlarged feeding port and widened discharging port, convenient feeding, anti-splash and easy collection. Equipped with voltage display and air switch, it comes with 2 brake wheels and 2 without brake wheels, ensuring safe use and flexible movement.
- 【Core functions】 Directly process corn pellets, kill microorganisms and parasites during the extrusion process, the feed is smooth and has moderate hardness, with small temperature changes during processing, complete nutrient retention, and improve the problems of poor palatability and low utilization rate of powdered feed.
- 【Material and advantages】The cast iron body is sturdy and durable. The three-head pressure roller operates stably. The pressure plate is detachable. The structure is simple, occupies a small area, and has low noise. Lubricating grease needs to be added regularly to extend the service life of the machine.
- 【Applicable scenarios】 Suitable for large, medium and small breeding sites, feed processing plants and individual farmers. Specifically designed for the chicken industry, it can be used alone or in combination with a hay cutter to enhance processing efficiency.
