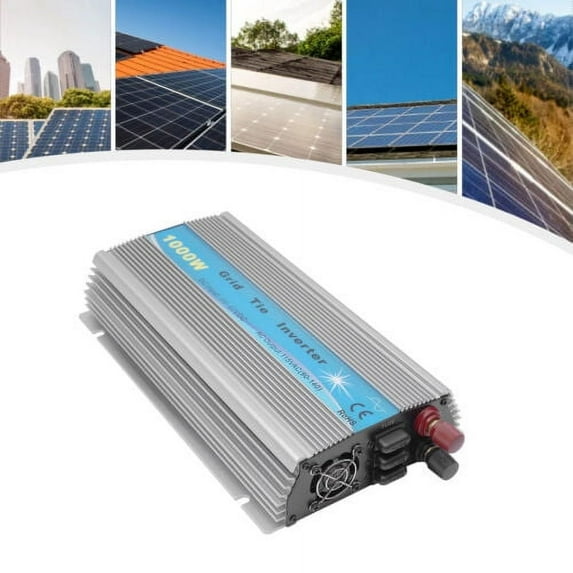

Solar Micro Inverter MPPT Grid Tie Inverter Pure Sine Wave DC20-50V to AC90-140V

(No ratings yet)

Key item features

High-quality Material: The grid tie inverter is made of aluminum alloy, which is rust-free, heat-resistant, cold-resistant and anti-corrosion. It also uses imported industrial electronic components, which you can use for a long time. Environmental-friendly Choice: This grid tie inverter converts the direct current generated by the solar panel into alternating current, providing an environment-friendly and pollution-free continuous energy source. High Efficiency: The product adopts a unique circuit design, imported industrial electronic components, isolated high-frequency transformer, and unique MPPT technology, with efficiency greater than 99%, so it can achieve sensitive response and more stable maximum power point locking. Pure Sine Wave: The grid tie inverter provides the same clean and pure sine wave output as the power supply. It can better protect sensitive devices, provide stronger driving ability, and lower power consumption. Electrical Isolation: The complete electrical isolation of machine output and input makes the entire power distribution system well-insulated, and the use of a fully isolated step-up circuit makes its use safer and more reliable. Safe and Secure: This product has a great electrical protection function. And the sturdy aluminum alloy shell can better prevent rainwater from eroding the surface, dropping and collision, so you can use it with confidence. Flexible Installation: The grid tie inverter adopts the modular design of parallel components, so you can conduct distributed installation according to your specific needs. Excellent Cooling Capacity: It is equipped with a high-speed intelligent cooling fan. When the temperature exceeds 45℃/113°F, it will automatically start to work to prevent the inverter from overheating. Small Floor Space: The size of this grid tie inverter is only 10.6*6.5*2.1inch, which does not occupy much space and can even be installed in small stores. High Security: This grid tie inverter has passed the professional CE and RoHS certifications. In addition, it also has some core technology patents for electronic circuit design, appearance design and so on. Therefore, it is a trustworthy product. Simple Structure: Its structure is simple. Therefore, you only need to clean the dust on the grid tie inverter without disassembly and reassembly.

Specs

Volts
140 V
Assembled product height
2.1"
Weight
7.7 lbs
Vehicle model
MPPT
Color
Silver
Model
GTI1000W

Current price is $99.20

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $14.00

2-Year Plan - $9.00

How do you want your item?

Ships to

Arrives between May 30 - Jun 1

Sold and shipped by DOMUS DESIGN INC

3.932170542635659 stars out of 5, based on 516 seller reviews(3.9)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Description

This grid tie inverter can effectively convert sunlight into clean green energy. It uses imported industrial electronic components, innovative MPPT technology and an isolated high-frequency transformer to make the efficiency higher than 99%, which is a more responsive, and higher output efficiency in photovoltaic power generation application systems. Its powerful output can effectively generate electricity for you.

Details

Gaskets: The inverter is equipped with two gaskets to help you install the photovoltaic support, making the inverter more stable.

Heat Dissipation Holes: The body has multiple heat dissipation holes, which help the machine to dissipate heat and enable it to run smoothly.

Application

It is very suitable for grid-connected power generation in schools, power stations and households. It is applicable to 36V solar panel and 36V battery.

Specification

Color: Silver

Model: GTI1000W

Material: Aluminium Alloy

AC Output Power:1000W

Maximum AC Output Power:1050W

AC Output Voltage: 110V(AC 90V-140V)170-260V

DC Input: DC 20V-50V

Frequency Range: 48- 62Hz(Self-adaption)

MPPT Range 26-38V

Scope of Application: 36V Solar Panel and 36V Battery

Package Size: 35*20*10cm/13.8*7.9*3.9in

Product Size: 21*16.5*5.3cm/10.6*6.5*2.1in

Gross Weight: 4kg/8.8lbs

Net Weight: 3.5kg/7.7lbs

Package Included

1*Grid Tie Inverter

1 Set* English Manual

1*Warranty Card

1*Power Cord

All Accessories for Assembly

Notes

1. Please note that the input and output voltage must be within the voltage range of the product.

2. Please note that the output port of the inverter must be connected to the household power grid socket (civil single-phase power grid) through an AC power line so that the product can work normally!

3. Please note that the PV input power is recommended to be greater than 20% of the rated power of the product.

4. Please note that the Vmp of the solar panel must be within the MPPT range to ensure the best MPPT maximum power output.

5. We recommend using 36V photovoltaic panels (VOC voltage between 26-50V) or 36V batteries as input power to obtain better output power.

6. Please note that the DC terminal must be tightened, otherwise, the product may be damaged.

7. Please note that the grid tie inverter cannot be used as off grid/stand alone solar system. The output needs to be connected to the grid power. And it can not supply power directly to the AC loads.

8. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

9. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
