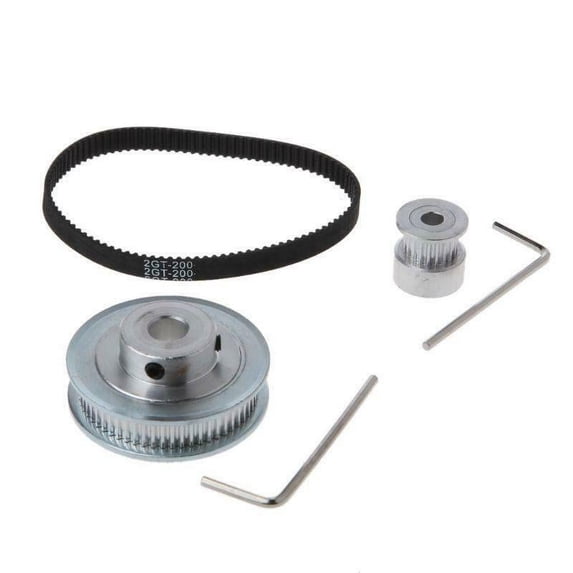

Gt 2Timing Belt Closed Loop 200Mm Pulley With 20 Teeth And 60 Teeth For Reprap Prusa Mendelmax 3D Printers 2Gt60T20T-200

Product description:

brand new and high quality
Made of high-quality materials,
2GT timing pulley; suitable for Reprap, for Prusa, MendelMax, 3D printers
The tooth profile is small in pitch, suitable for linear drive;
pulley with 20 teeth or grooves is of the best choices for 3d printer structure
Compared with T2.5 or MXL synchronous pulleys, the tooth profile of pulleys has anti-backlash function.

Timing belt 2GT60T20T-200 specifications:
Model: 2GT60T20T-200

200-2GT-6 timing belt:
2GT pitch: 2mm
Belt height: 1.52mm
Tooth height: 0.76mm
Material: Rubber
Pitch: 200mm
Width: 6mm
Shape: closed loop 2GT timing belt

2GT pulley big:
Number of teeth: 60
Tooth pitch: 2mm
Hole diameter: 8mm
Flange: Double
Tooth width: 7mm
Material: Aluminum
Suitable timing width: 6mm

2GT small pulley:
Number of teeth: 20
Tooth pitch: 2mm
Hole diameter: 5mm
Flange: Double
Tooth width: 7mm
Material: Aluminum
Suitable timing width: 5mm


Package list:

1 *20 teeth
1 * 60 teeth
1 *200mm timing belt
2 * Wrench

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
