Hero image 0 of Three Rolls Grinder Machine Paint Ink Grinding Mill Machine Paste Materials Grinder 220V 60HZ 3PH, 0 of 10

Preasion

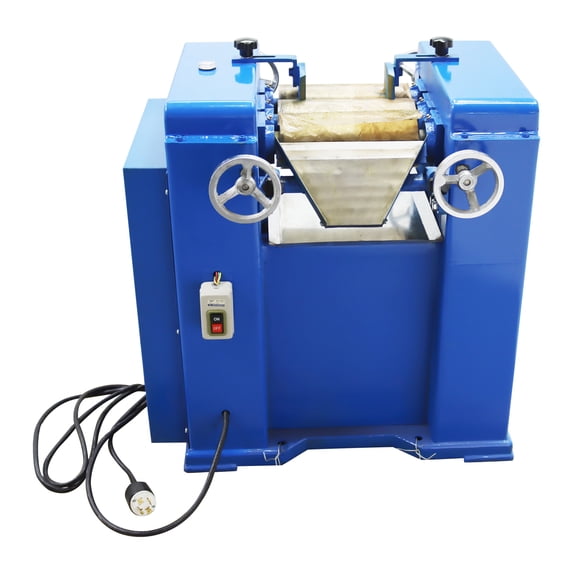

Three Rolls Grinder Machine Paint Ink Grinding Mill Machine Paste Materials Grinder 220V 60HZ 3PH

(No ratings yet)

Key item features

Widely Application: Three-roller grinding mill machine is mainly applied to grinding operation of paste materials of paint, ink, pigments, plastic, food, etc. This machine is suitable for high viscosity materials, such as printing ink, offset ink and lithographic ink.
Material Baffles: The material baffles are made of white plastic and brass, so that the machine is more suitable for testing materials with high color requirements.
Note: It is neither suitable for grinding the materials containing acid and alkali composition nor suitable for the materials which would corrode rollers.
High Performance: It is equipped with three rollers which are in the horizontal level. With the rollers extruding and milling at different speeds, the materials are ground normally for two times, hard or high viscosity materials are ground for more times, and then high quality finished products of 3-18um (testing with a fineness scraper) are obtained.
Oil Filler Holes: An oil filler hole is formed in the top of the machine, an oil filler hole is formed in each of the two sides of each roller, and gear grease needs to be added regularly.

Specs

Power milling machine type
Horizontal Milling Machine
Brand
Preasion
Electrical phase
Three Phase
Height
33.1 in
Volts
220 V
Weight
485 lb

Current price is $3,359.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between May 30 - Jun 3

Sold and shipped by Sunflower'yaxun Co.Ltd

4.022222222222222 stars out of 5, based on 90 seller reviews(4.0)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Product Overview:
Three-roller grinding mill machine is mainly applied to grinding operation of paste materials of paint, ink, pigments, plastic, food, etc. It is neither suitable for grinding the materials containing acid and alkali composition nor suitable for the materials which would corrode rollers. This machine is suitable for high viscosity materials, such as printing ink, offset ink and lithographic ink.
It is equipped with three rollers which are in the horizontal level. With the rollers extruding and milling at different speeds, the materials are ground normally for two times, hard or high viscosity materials are ground for more times, and then high quality finished products of 3-18um (testing with a fineness scraper) are obtained.
-DO NOT PUT HANDS INTO THE MACHINE DURING OPERATION.

Product Parameter
Diameter of roller :3.94inch (100mm)
Length of roller :9.84inch (250 mm )
Feed roller: middle roller: apron roller:1:2.6:6.6
Power(KW):220V /1.1KW 60Hz 3PH
Dimension L*W*H (INCH):30.7*26*33.1
Weight :220 kg/ 485 lb

How to use:
1- Read the instruction manual carefully before use.
2- Place the machine on a level ground with no debris around.
3- Install appropriate baffles according to the grinding materials. White plastic baffles are more suitable for grinding light-colored materials.
4- Clean the drum and its surrounding area thoroughly.
5- Connect the power supply and turn on the switch.
6- Add a small quantity of grinding materials to the feeding port and adjust the four knobs on both sides according to the distribution of the material on the drum.

Item included: 134107
Three Rolls Grinder Machine 220V 60HZ 3PH
Material baffles*2
Tray *1
Blades*1

Widely Application: Three-roller grinding mill machine is mainly applied to grinding operation of paste materials of paint, ink, pigments, plastic, food, etc. This machine is suitable for high viscosity materials, such as printing ink, offset ink and lithographic ink.
Material Baffles: The material baffles are made of white plastic and brass, so that the machine is more suitable for testing materials with high color requirements.
Note: It is neither suitable for grinding the materials containing acid and alkali composition nor suitable for the materials which would corrode rollers.
High Performance: It is equipped with three rollers which are in the horizontal level. With the rollers extruding and milling at different speeds, the materials are ground normally for two times, hard or high viscosity materials are ground for more times, and then high quality finished products of 3-18um (testing with a fineness scraper) are obtained.
Oil Filler Holes: An oil filler hole is formed in the top of the machine, an oil filler hole is formed in each of the two sides of each roller, and gear grease needs to be added regularly.
