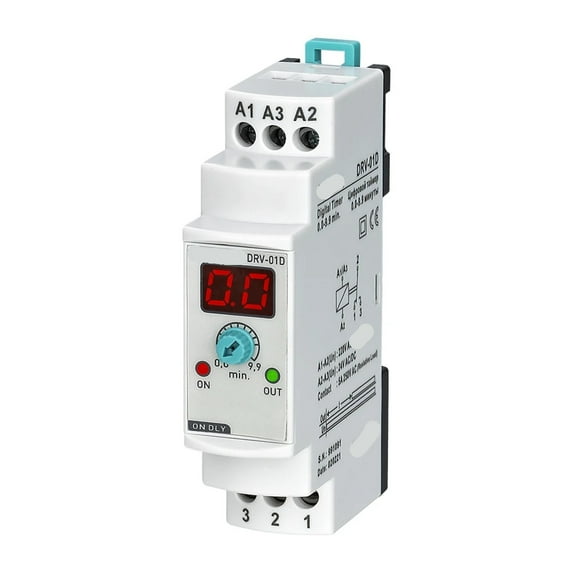

EJYWPSWD DRVXX Digital on Delay Time Relay

General

DRV-XX digital timer is designed to be use wherever time dependent control is required.

Usage and Working Principle

Display:

Displayed here while setting the time and counting down the set time. If the operating time is set in minutes, the rightmost point of the display flashes while the device is counting the time.

might damage the device. Make sure device works after cleaning

Warnings

Please use the device according to the manual.

Don't use the device in wet.

Include a switch and circuit breaker in the assembly.

Put the switch and circuit breaker nearby the device, operator can reach easily.

Mark the switch and circuit breaker as releasing connection for device.

Specifications

Operating Voltage(Un)....: 150V-260V or 110VAC; 24VDC

Time(t).................................: 0.0sec, - 99hour

Display:.................: 1x2 LED Display,2x LEDs.

Connection Type..............: Terminal connection

Weight................................: Max.220gr.

Contact....................:5A/250V AC (Resistive Load)

Mounting.................: Assembled on the din rail

Operating Altitude..........: <2000meter

Cable Diameter.................: 2,5mm²

Theory : Time Relay

is_customized : Yes

Contact Load : High Power

Model Number : DRV-XX

Use : General Purpose

Protect Feature : Sealed

Mode : On Delay

Tpye : Time relay

Display : Digital

Accuracy : ±1%
