LED Strip Connector Kit For 5050 10mm 4Pin Includes 8 Types Of LED Strip Fitting
Product Selling Point: Premium Material: The wire is made of tin plated copper and PVC insulation cover which is soft, bendable.You can bend the wires to any degrees you want.PVC plastic cover is durable and wearable
Easy Installation: Simple, tool-free installation and avoid soldering, 5050 4Pin RGB LED Strip Connector Kit, plug and play
Wide Application: The connection between the lamp strip and the strip, the connection between the strip and the controller, the connection between the strip and the splitter

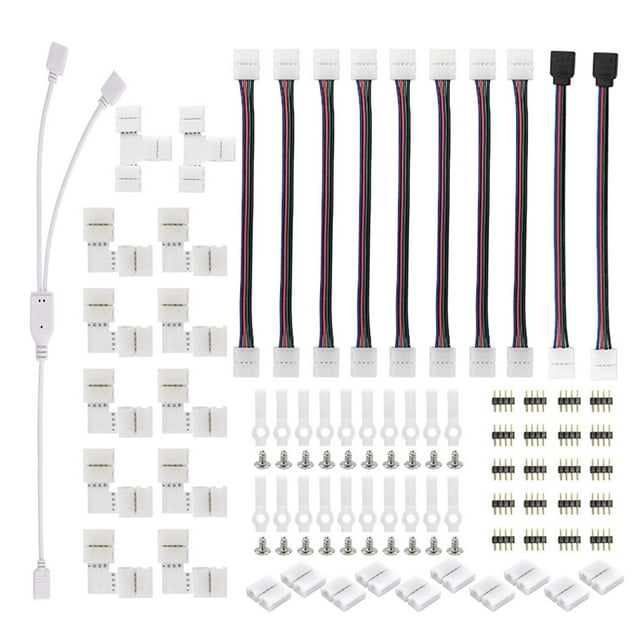

Package Content : 8x LED Strip Jumper, 10x Gapless Connectors,12x L Shape Connectors, 2x T Shape Connectors, 1x 2 way RGBW splitter cable,2X 4 Pin female connector with bare wire terminal,20x 4 Pin Male to Male Connector,20x LED Strip Clips
Operting Condition: These LED tape connectors support 0-4A current and 0-24V voltage input, heat resistance level from 20-100 degree
This 5050 4 Pin LED strip light connector kit provides the most parts you need for a DIY LED strip light project.
The LED strip jumper connector with wire is used for connecting RGB 5050 flexible LED light strips and strip segments around corner. The L shaped led strip connector is used when you need to spring your light strips around sharp 90 degree corner.
The T shape LED strip connector is for 3 way quick splitter connection.
2 way RGB splitter cable is for connecting 2 pcs of 10mm wide SMD 5050 color changing RGB LED strip lights to a single controller.
The gapless led strip connector helps connect two RGB 5050 flexible LED tape light and strip segments easily and quickly without soldering.
4 Pin male connector is widely used as connector between led strips and remote controller.
4 Pin female connector with bare wire terminal Connect several light segments of cut-to-size strip lights together and remote controllers.
The LED strip clip is easy to fix the light strip by one screw, and take down the LED strip light from the other end freely when replace or maintain it.
CONNECTOR INSTRUCTIONS:
Ensure your light strips work well.
Cut along the suggested line of the LED strip evenly.
when used for waterproof LED strips, please strip the silicone on the contact area (about 0.25inch).
Align the "+" on the light strip with the side with the cover on the connector. Ignore the RGB/BGR labels, which are irrelevant.
Slide the LED strips to the connector from the slots on the connector sides.
Make sure that each metal pin on the connector is pressed above the brass contact point of the light strip.
Turn on the power to make sure that each LED is working. Then close the lids of connectors.
Note:
Please allow 0.5-1cm errors due to manual measurement
Due to the difference between differentmonitors, the picture may not reflect the actual color of the item.
Package content:
8x LED strip jumper connectors;
2x T shape 4 Pins connectors;
12x L shape connectors;
10x gapless LED strip connectors;
1x 2 way RGBW splitter cable;
2X 4 Pin female connectors with bare wire terminal;
20x 4 Pin male to male connectors;
20x LED strip light clips.
