TTL Optical Transceiver Module Optical Terminal Equipment Drone-Specific ZED-F9P UM980 UM982 Ground+Air

This device is developed for UAV signal transmission system with 1 analog video and 1 TTL level signal. It is safe and reliable, stable in performance, light in weight and cost-effective. It can be customized on demand.
The wavelength of the optical fiber at the ground+air end is 1550nm, The interface is defined as: RX/TX/AV/VCC/GND, RX is connected to the CRSFTX of the remote control receiver TX is connected to the CRSFRX of the remote control receiver. AV output to display screen or VTX AV signal input port VCC supply voltage is 5.5V~26V

Power supply: 5.5V-26V: (2S-6S battery)
Power consumption: less than or equal to 5 W
Communication interface: MX-SH1.0mm-5P: CRSF
interface/CVBS video port
Optical fiber interface: FC
communication distance: maximum 20KM
Color: As shown
Material: PC
Specification: ground+air

Package Contents:

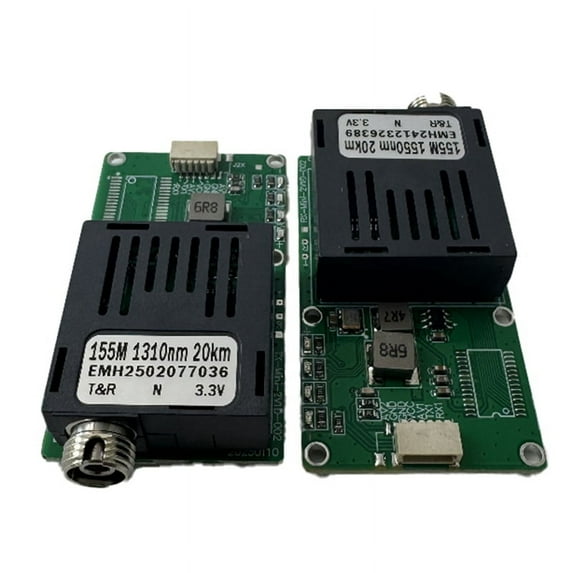

2 x TTL Optical Transceiver Module(The circuit board printing is slightly different, which does not affect the use)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
