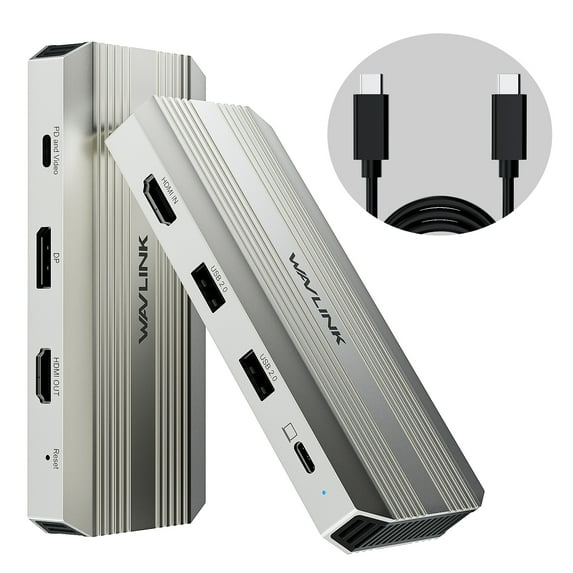

WAVLINK 7-in-1 4K Video Capture Card, USB Dock Station, Video USB Display Adapter with 90W Laptop Charging, Compatible with PS5/Xbox/Switch, OBS, Windows/Mac

Multiple Display Resolution (Max. Resolution)
[*Notice: Please make sure the type-C port of your host supports video output.]

- Single Display:
PD and Video: 4K@144Hz
DisplayPort: 4K@144Hz

- Dual Display:
PD and Video+HDMI OUT: 4K@60Hz+4K@30Hz
DisplayPort+HDMI OUT: 4K@60Hz+4K@30Hz

Features:
- Supports capturing every detail of gameplay, streaming video, live broadcasts with one 4K@30Hz HDMI IN and one USB-C host.
- Supports loop-out for an immersive and clear viewing experience with a 4K@30Hz HDMI OUT.
- Supports working with third party software to capture or stream your HD game or other HD video sources and enhance your workflow with ultra-low latency technology.
- Supports up to a single 4K@144Hz extend with one DP, one PD and Video port.
- Supports PD passthrough IN 100W for capture card and 90W charging for upstream USB-C host with one USB-C PD.
- Supports stable and reliable data transfer with two USB-A ports.
- Plug and play, driver free, easy to set up.
- Supports highly effective heat dissipation with full aluminum case.
- Supports MST mode for Windows and SST mode for Mac OS.

【Warm Tips:】
1.To fully utilize all features of this Video Capture Card, including video output (via DisplayPort or the 'PD and Video' USB-C port) and Power Delivery charging to the laptop, the connected laptop's USB-C port must support DisplayPort Alt Mode (DP1.4 or higher is recommended for optimal performance with high resolutions/refresh rates) and Power Delivery (PD) input.
2.The USB-C Host and HDMI IN cannot work simultaneously, if they are connected at the same time, the HDMI IN captures the video first.
3.If you have selected the DP port to extend or mirror your computer's screen, the PD and Video port can only act as a Power IN, so a connection of power source device is required for PD and Video port.
4.For Windows based Laptop/PC, MST mode is available, one video source is captured and looped out to the HDMI OUT interface, and the other video source is extended to the DP or PD and Video interface.
5.For Mac based Laptop/PC, only SST mode is available, one video source is captured and looped out to the HDMI OUT port, and the other video source is mirrored to DP/PD and Video port.

Systems/ Devices Compatibility:
- Microsoft Windows 7/8/10/11
- Apple Mac OS 10.8 or later(Can extend a different display ONLY)

How to Confirm if the Type-C Port of Your Laptop Supports Vido Output and Charging?
Step 1: Please check the model of your laptop, it should be on the back of the label;
Step 2: Search “brand + the model number of the device + manual” in Google, for example: “asus ux435 manual”;
Step 3: Check the manual and navigate to the view and check the type-c specification, if it states it supports power delivery which means it supports charging. If it states the type-c port supports display which means it could support video output. If the specification states bandwidth the type-c port supports only, which means the type-c port might not support video output and charging. You could also contact the manufacturer to confirm that.

Specification:
1.Model: WL-VR204
2.Ports:
- Front: HDMI IN port (4K@30Hz); 2 x USB 2.0 port (up to 480Mbps); USB-C Host (4K@30Hz);
- Rear: PD and Video port (Single 4K@144Hz,PD IN 100W); DP port (Single 4K@144Hz); HDMI OUT port (4K@30Hz).
3.Unit Size: LxW×H:13.4cm×6.2cm×1.7cm/5.27inch×2.44inch×0.67inch
4.USB-C to C Cable Length: 100cm/39.4in
5.Unit Weight: 127g/4.4oz
6.Material: Aluminum housing

In the Box:
- 1×MST 4K HDMI Video Capture Card
- 1×10G USB-C to USB-C Cable with E-Mark
- 1×Quick Start Guide
