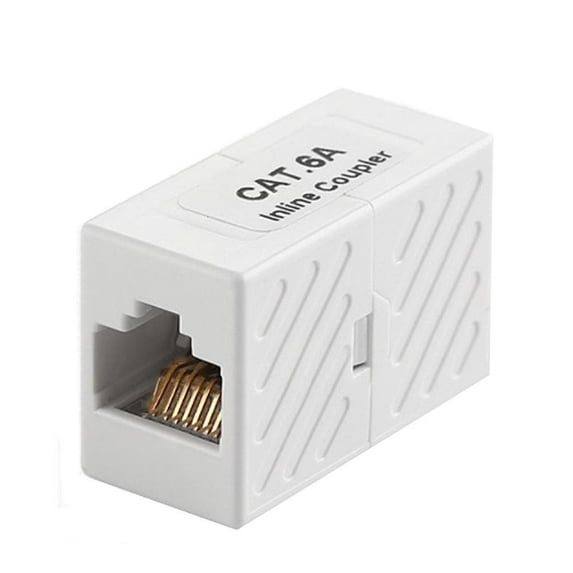

SIEYIO RJ45 Cat6 Cat6A Ethernet Coupler Cable Extension Adapter for Networking Connection Between Switches Routers PC

Features:
Experience fast speed internet connection with our RJ45 Coupler Cat6, to support CAT6A standards and delivering up to 10Gbps transmission, ensuring seamlessly data flowing for your networking needs.
Super Category 5 and Category 6 unshielded direct networking module female to female RJ45 CAT6 double networking adapter
RJ45 series port outlets that comply with international standards;can be used as a solid wire of 22-26AWG;
Card line repetition rate: more than 80 times; Eight wire spring with 6Minch, 15Minch, 30Minch, 50Minch;
Support insertion and extraction frequency: more than 1000; The technical performances meets the EIA568 Class standard.

Specifications:
Type：CAT6/CAT6A Inlined Coupler
Size：about 27.94x17.07x15.12mm/1.1x0.67x0.6in
Electrical performances :
1. Insulation resistance: not less than 500mΩ
2. Pressure resistance: DC1000V (AC750V) 50-60Hz for 1minute
3. Contact resistance: not greater than 20m Ω
Mechanical performances :
Service life: insertion and extraction times not less than 750 times. Terminaled card wire repetition not less than 250 times
Work environment :
1. Working temperature: -10℃~60 ℃
2. Working temperature: 10~90%

Note:
Due to the problemsof lighting effects , there will be tolerances in product, please understand.
Please allow 0-1cm error due to manual measurement

Package includes:
1PC CAT6/CAT6A Inlined Coupler
