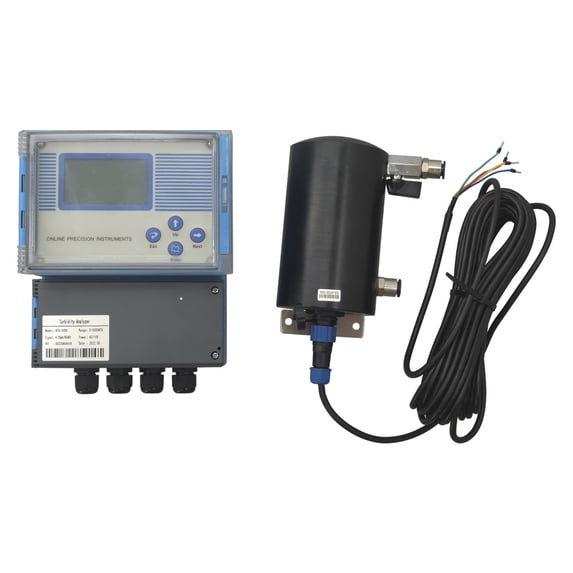

110V 5000NTU Water Treatment Flow-Through Online Turbidity Meter Turbidimeter Turbidity Detector

Introduction:
The turbidity meter is an on-line monitoring instrument designed for the measurement of water quality and turbidity in municipal wastewater and industrial wastewater treatment process. It can be used to detect the turbidity change of the biochemical treatment process, and to provide the result of continuous and accurate measurement.It is widely used in municipal water supply, drinking water treatment plant, purification tank, paper industry, sewage treatment plant, manure treatment plant, chemical industry, livestock wastewater treatment, industrial wastewater treatment and so on.

Product Parameters:
Voltage: AC110V±10%
Measuring range: 0-5000NTU
Measurement unit: mg/L and NTU optional
Resolution: 0.1 NTU
Accuracy: ±1.0%FS
Repeatability: ±1.0%FS
Ambient temperature: -20℃-60℃
Relative humidity: (65±20)%
Analog output: 4-20mA, load 750Ω
Alarm output: Double relay
Digital output: RS485
Sensor waterproofing: IP68
Length of line: 32.8ft(10m)
Probe head housing material: SUS304 Stainless Steel
Package size: 14.6"*12.6"*7.5"(37cm*32cm*19cm)
Net weight/Gross weight: 4.7LB(2.15kg)/6.3LB(2.85kg)

Item Included(056451):
Turbidity Detector *1
Sensor *1
English manual *1
