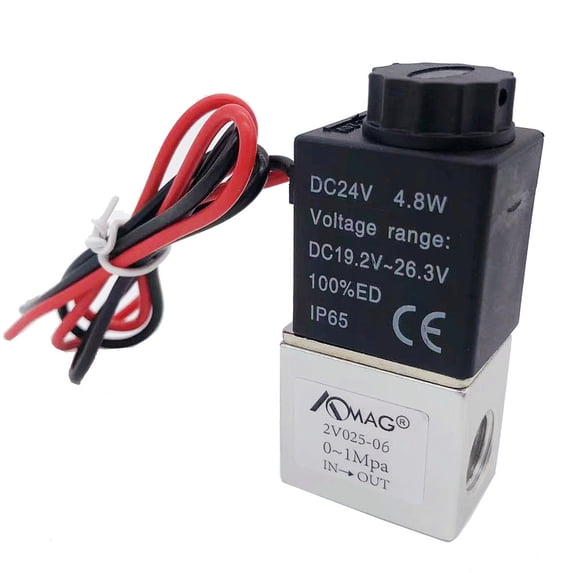

AOMAG Normally Closed Electric Solenoid Air Valve 1/8" NPT DC 24V

This solenoid valve has one 1/8" inch NPT inlet and one 1/8" inch NPT outlet port. Valve stays close when the coil is de-energized- and it opens when energized. Has two holes in the bottom and can be mounted in any position. Comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constant energized. 2ACK Series valve is a Zero differential solenoid valve which can be operated at 0 PSI (Vacuum). WIC Valve is compatible with SMC valves. Specification : Model Number : 2ACK-1/8-24VDC-G Valve Type : 2 Way Normally Closed (Valve opens with energized) Service Media : Air- Gas- Liquid- Water Operation Model : Direct Acting Flow Model : Uni-Directional Flow Rate : 0.23Cv (Fluid Flow)- 22 SCFM at 100 PSI (Air Flow) Response Time : Less than 20 ms Body Material : Anodized Aluminum Seal Material : NBR (Buna N) Armature Tube Material : Brass Plunger & Spring Material : Stainless Steel Coil Certification : CE Certification Coil Power : 6.5W Coil Class : F Class IP 65 (CE Certification) Coil Duty : 100% ED (Continuous Duty) Operating Pressure : Vacuum to 115 PSI Operating Temperature : -5 to 80 °C Port Size : 1/8" Inch NPT Female Port Coil Voltage : 24V DC Voltage Tolerances : DC : +10% –5% ; AC : +10% -15% Electrical Connection : Grommet Coil with 12" Lead Wire 2ACK Series Electric Solenoid Valve Dimensions : Package included : 1 x 1/8inch DC 24V Electric Solenoid Air Valve
