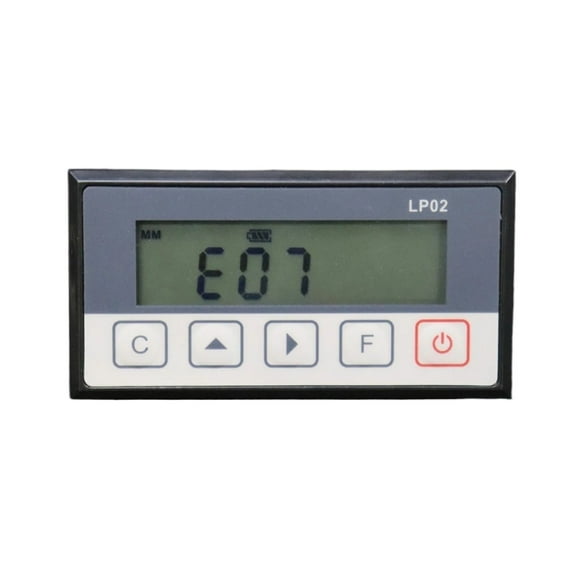

7-Bit LCD Display LP02 Digital Magnetic Scales/Sensor Set/Kit for Milling Grinding Stone Wood Cutting Machines ,Easy to Use

7-bit LCD display, more suitable for long travel equipment

High contrast backlight, clear and eye-catching

Low power consumption, no external power supply (built-in two 5 batteries)

Repeat accuracy ±0.01 mm

Initial value reset function (" clear ")

Optional mm/ inches inch mm

Optional linear/angle measurements

Points for attention

1. this product is installed, if the deviation is too large, it will affect the accuracy of use, or even can not be used

2. please do not corrode, acid and alkali, direct sunlight and other occasions that exceed the environmental requirements,

otherwise it may cause trouble

The bending radius of the 3. head conductor must be greater than 25 mm

4. the installation of this equipment should be far away from circuit breakers, relays, motor capacitors, brakes, clutches,

frequency converters and so on at least 0.5 meters above

5. cable direction must be separated from the power line to reduce incoming noise

Preparation:

1. move direction confirm: read head move data is increasing otherwise enter P02 reset.

2. compensation starting point confirmation: move the read head to the machine origin while pressing the ""+"" key to

display "--00--" and the operation is successful.

Operation process:

1,To enter the menu P27, select 1, press "F to enter the starting point 0 for multi-segment compensation;

2,After entering the current true length value, press "Save F" and move to the next compensation point.

3,Repeat the previous step until finish 5 and exit automatically.

(Note: If you do not need full compensation in 5 paragraphs, press to force the current point compensation to be completed and withdrawn)
