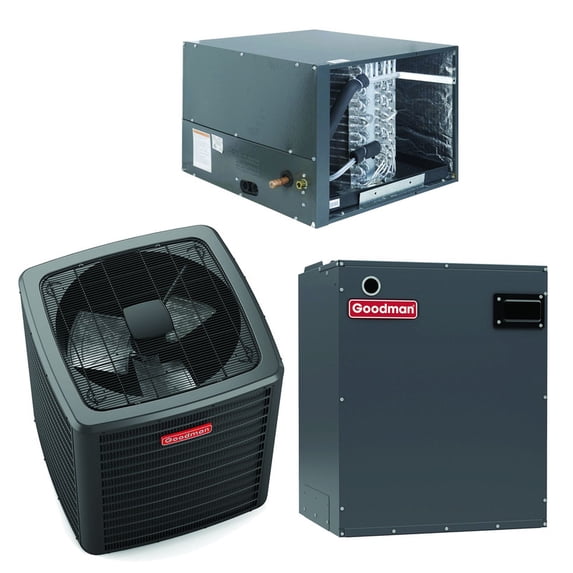

Goodman 3 Ton 17.2 SEER2 R-32 Two-Stage Horizontal Heat Pump System (1,600 CFM) |GLZT7CA3610-CHPTA3630C3-MBVB16CP1X00A

The Goodman GLZT7 High-Efficiency 2-Stage Heat Pump Condenser is available now in limited quantities!

Standard Features:

• Two-Stage Copeland UltraTech scroll compressor
• High-density foam compressor sound blanket
• Integrated communicating ComfortBridge technology
• Commissioning and diagnostics via indoor board
• Bluetooth with the CoolCloud phone and tablet application
• Goodman GTST Connected Thermostat Compatibility
• ComfortAlert built in diagnostics
• Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
• Copper tube/enhanced aluminum fin coil -7mm on 4.0-5.0 T
• Efficient, two-speed ECM condenser fan motor
• Simple low-voltage wiring to outdoor unit in communicating mode
• Diagnostic indicator lights and storage of six fault codes
• Color-coded terminal strip for non-communicating set-up
• High- and low-pressure switches
• Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• Factory-installed coil and ambient temperature sensors
• AHRI Certified; ETL Listed

Cabinet Features:

• Grille-style sound control top design
• Custom Nickel Gray powder-paint finish
• 500-hour salt-spray tested
• Wire fan discharge grille
• Steel louver coil guard
• Single panel access to controls with space provided for field-installed accessories
• Sweat connection service valves with easy access to gauge ports
• When properly anchored, meets the 2024 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

The Goodman MBVB Modular Blower is tailor-made for exceptional energy efficiency. This blower is only compatible with matched R-32 refrigerant air handlers and coils. unit will not work with R-410A equipment.

Standard Features:

• Variable-speed ECM blower motor
• Integrated communicating ComfortBridge Technology
• CFM indicator
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
• Advanced configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• Storage of six prior fault codes
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump and cooling applications
• AHRI Certified
• ETL Listed

Cabinet Features:

• Blower section usable as electric heatert
• Horizontal or vertical configuration capabilities
• 21” depth for easier attic access
• Foil-faced insulation is glued in place and covers the entire blower case, reducing sound and cabinet condensation
• Galvanized, leather grain-embossed finish
