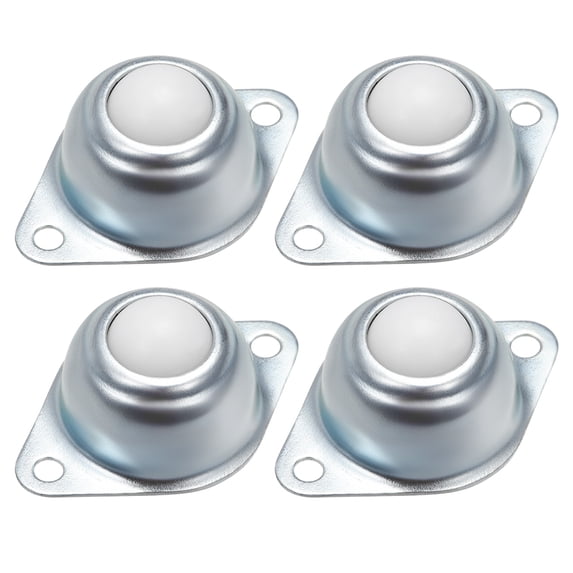

Transfer Units CY-15A 5/8" Nylon Roller Ball Flange Mounted Transfer Bearing 22lb Load 4Pcs

Description:
Ball Transfer Unit are omni-directional load-bearing spherical balls mounted inside a restraining fixture.
360 universal transfer bearings is suitable for curved work created on band saws and router tables.
5/8 inch diameter ball bearing roller is perfect. With a load bearing capacity of 22 lbs. each.
Housing be made of carbon steel material, Roller Ball made from Nylon.
Featues: Two screw holes in each bearing surround for solid attachment to the worktable or workbench.
Widely used in transmission system, feeding system, processing system, processing machinery and packaging machinery auxiliary equipment.

Specifications:
*Model: CY-15A
*Capacity(Max.): 10kg/22lb
*Ball Diameter: 15.8mm / 0.62-inch
*Mount Hole Dia.: 4mm/0.16-inch
*Mount Hole Distance: 39mm/1.5-inch
*Material: Carbon Steel, Nylon
*Dimension: 48 x 32 x 20mm/1.9-inch x 1.26-inch x 0.8-inch(L*W*H)

Package Content:
*4pcs x Ball Transfer Unit
