Flo Supply 3AN Black Nylon Covered Stainless Steel Braided Hose - PTFE Liner - 15 Ft.

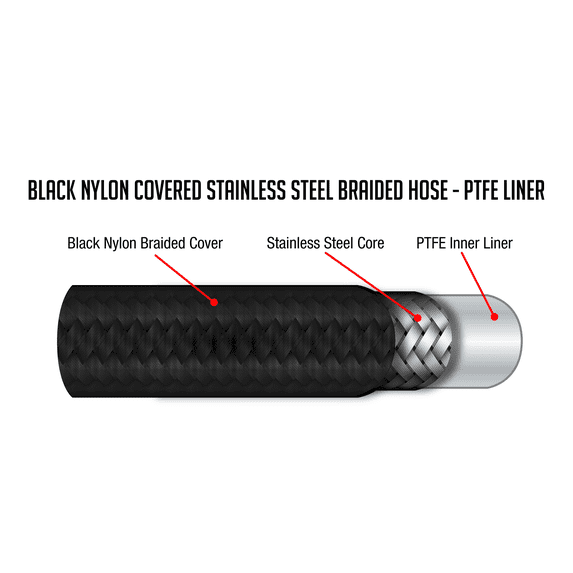

• Black Nylon Braided Outer Cover Over A Stainless Steel Braided Core With PTFE Inner Liner
• Non-Conductive
• Works With Forged And Non Forged PTFE Hose Ends
• For Use With Pump Gas, Race Gas, Alcohol, E85, Diesel, Bio Fuels, Water, Coolant, Oil, Trans Fluid, And Vacuum

Product Details:

• 3AN - 9/64" I.D | 1/4" O.D | 4000PSI Operating Pressure | 12000PSI Burst Pressure

• 4AN - 3/16" I.D | 19/64" O.D | 4000PSI Operating Pressure | 12000PSI Burst Pressure
• 6AN - 21/64" I.D | 27/64" O.D | 3000PSI Operating Pressure | 10000PSI Burst Pressure
• 8AN - 27/64" I.D | 35/64" O.D | 2500PSI Operating Pressure | 8000PSI Burst Pressure
• 10AN - 33/64" I.D | 5/8" O.D | 2000PSI Operating Pressure | 6000PSI Burst Pressure
• 12AN - 41/64" I.D | 49/64" O.D | 1000PSI Operating Pressure | 4000PSI Burst Pressure
• 16AN - 7/8" I.D | 1-1/32" O.D | 1000PSI Operating Pressure | 3000PSI Burst Pressure
  boosts#toggleFormOnEscOrEnter" data-controller="boosts" class="boosts metadata avatar-group--x-small push--bottom boosts--empty">

Product Crimp Specs Chart:

Flo Supply Crimp Spec and Die Set Reference Chart
