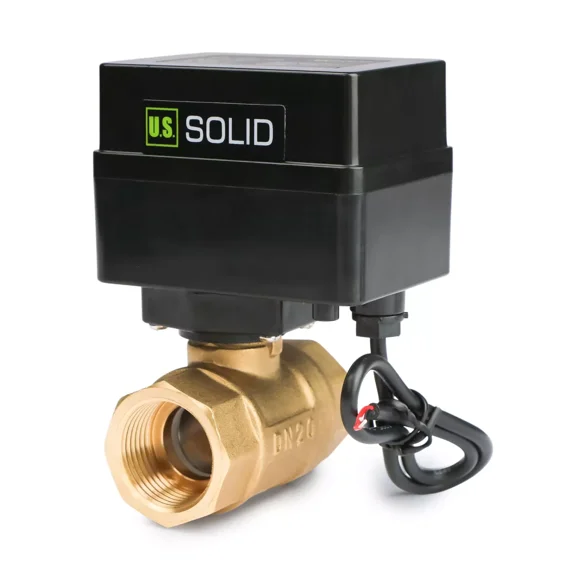

U. S. Solid Motorized Ball Valve with 3 Signal Lights, 3/4 inch, Brass, Normally Open, Black Casing

(No ratings yet)

U. S. Solid Motorized Ball Valve with 3 Signal Lights, 3/4 inch, Brass, Normally Open, Black Casing U S Solid Motorized Ball Valve 3 4 inch Brass 9 36V AC DC with 3 Indicator Lights U S Solid Motorized Ball Valve 1 2 inch Stainless Steel 9 36V AC DC with 3 Indicator Lights U S Solid Motorized Ball Valve 1 inch Brass 9 36V AC DC with 3 Indicator Lights U S Solid Motorized Ball Valve 3 4 inch Stainless Steel 9 36V AC DC Normally Open Standard Port 2 Wire Auto Return Setup with 3 Indicator Lights U S Solid Motorized Ball Valve 1 2 inch Brass 9 36V AC DC Normally Open Standard Port 2 Wire Auto Return Setup with 3 Indicator Lights

Material:Brass

Size:3/4 in

Key item features

3 Signal indicator lights. Open: Indicating that the ball valve is open and operational. Closed: Indicating that the ball valve is closed and in standby mode. Stuck: Indicating that the ball valve is stuck or experiencing a fault condition, requiring inspection or maintenance.
2 Wire auto return wiring. DC: Connect the red wire to the positive pole(+) and the black wire to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. AC: Connect one wire to the positive pole(+) and the other to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. To ensure proper operation of the auto-reset function in case of power failure, it is necessary to power the equipment for approximately one minute for charging the capacitor in 2-wire-auto-return motorized ball valves.
IP65 Rating: protection from water jets from any direction. If permanently installed outdoors, it is advisable to place it in a shaded area or in a protective enclosure to prevent prolonged exposure to rainwater.
Normally open. It remains open without power and closes when energized, blocking fluid or gas flow.
Standard port. The valve's internal diameter is smaller than the pipe size.

Specs

Valve type
Ball Valves
Size
3/4 in
Material
Brass
Brand
U.S. Solid
Features
Energy Efficient
Has written warranty
No

Current price is $33.29

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Fri, May 29

Sold and shipped by Joyfay International LLC

4.741116751269035 stars out of 5, based on 198 seller reviews(4.7)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Motorized ball valves provide an energy-efficient option compared to solenoid valves, particularly for extended periods of operation. They primarily use power when opening and closing, with minimal consumption once fully open. This enables continuous operation without the concern of overheating or premature failure. We recommend using Teflon tape to ensure the sealing of NPT threads.
Parameters
Brand: U.S. SOLID
Model: USS-MBV00001
Valve Material: Brass (NOT available for drinking water)
Seal: PTFE
Voltage: AC/DC 9-36V
Port Size: 3/4" NPT Standard Port
Normally Closed/Normally Open: NO, Normally Open
Maximum Torque: 2 N·m
Maximum Power: 5 W
Open/Close Time: 6-10 Seconds
Life Expectancy: 80,000 to 100,000 Cycles
IP Rating (Casing): IP65
Maximum Pressure: 1.0 MPa (145 psi)
Medium Temperature: 0℃ to 90℃ (32℉ to 194℉)
Ambient Temperature: -5℃ to 40℃ (23℉ to 104℉)
Wiring: 2 Wire Auto Return
Casing Color: Black
Indicator Signal: Open, Closed, Stuck

3 Signal indicator lights. Open: Indicating that the ball valve is open and operational. Closed: Indicating that the ball valve is closed and in standby mode. Stuck: Indicating that the ball valve is stuck or experiencing a fault condition, requiring inspection or maintenance.
2 Wire auto return wiring. DC: Connect the red wire to the positive pole(+) and the black wire to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. AC: Connect one wire to the positive pole(+) and the other to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. To ensure proper operation of the auto-reset function in case of power failure, it is necessary to power the equipment for approximately one minute for charging the capacitor in 2-wire-auto-return motorized ball valves.
IP65 Rating: protection from water jets from any direction. If permanently installed outdoors, it is advisable to place it in a shaded area or in a protective enclosure to prevent prolonged exposure to rainwater.
Normally open. It remains open without power and closes when energized, blocking fluid or gas flow.
Standard port. The valve's internal diameter is smaller than the pipe size.
