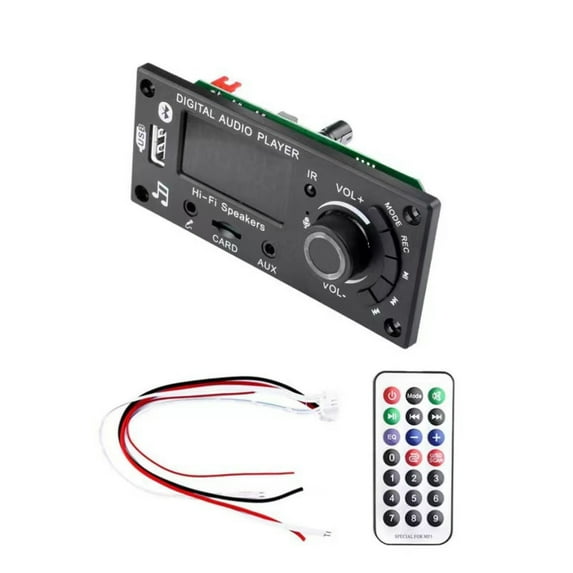

TAPDRA Multifunction Bluetooth Amplifier Board 2x50W MP3 USB TF FM AUX Remote Control Decoder

Features:
Premium Construction: Crafted from high-quality materials for durability and practicality.
Versatile Music Formats: Supports MP3, WMA, WAV, APE, and FLAC lossless music formats, catering to diverse musical preferences.
Comprehensive Connectivity: Features MP3, USB, TF, LINE IN, FM, BLUETOOTH, and remote control connection functions, providing versatile options for audio input and control.
Stable Performance: Equipped with Bluetooth version 5.0 for reliable and stable wireless connectivity.
Multifunctional Applications: Includes Bluetooth call function, connecting microphone function, folder switching function, and recording function, offering a wide range of applications and uses.

Specifications:
Power: 2*50W
Voltage: DC7V-25V
Receiving FM frequency: 87.5-107.5 MHZ
Recording function description:
1. Long press the REC button to start recording, and then long press the REC button to cancel the recording function and play the recording file
2. Recording than need to connect a storage device, such as: U disk or TF card; storage device, such as U disk or TF card, long press PLAY/PAUSE button (play/pause) to enter the recording folder and play the recording file

Interface Function:
USB Interface: Connect U disk (maximum support 32GB)
LED Screen: Digital display
MIC: Support call and recording function
IR: Infrared receiver module
VOL+/VOL-: Rotate right to volume up, rotate left to volume down
MODE: Switch between USB / TF / FM / AUX / BLUETOOTH
REC: Long press the REC button to start recording, press the REC button again to cancel the recording function and play the recording file; when recording, you need to connect a storage device, such as: U disk or TF card
PLAY/PAUSE: Short press is the switch between pause and play; long press is the radio FM automatic station search
TF Card Slot: Connect TF memory card (maximum support 32GB)
AUX Connector: Audio input connector
NEXT: Short press to select the next song; long press to fast forward; double-click to switch to the next folder
PREV: Short press to select the previous song; long press to fast rewind; double-click to switch to the previous folder

Package Included:
1 x Bluetooth Amplifier Decoder Board
1 x Antenna
3 x Terminal Cables
1 x Remote Control
