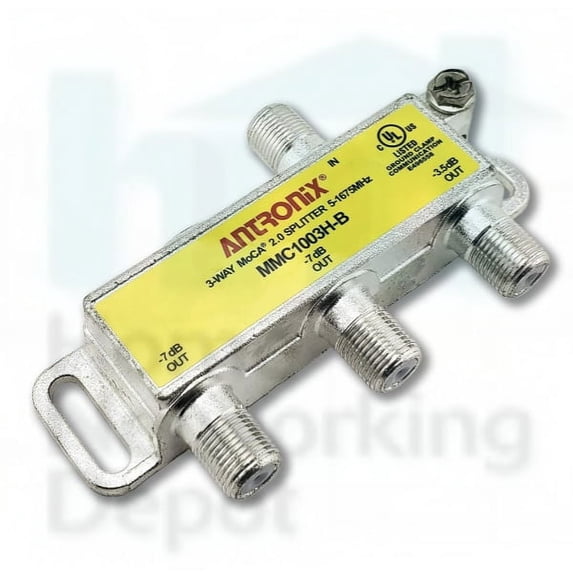

ANTRONIX 3 WAY UNBALANCED SPLITTER MoCA 2.0 COMPLIANT 5-1675 MHz - MMC1003H-B

KEY FEATURES;

FEATURES OF ANTRONIX MMC1003H-B 2 BALANCED OUTPUT PORTS WIDEBAND RF SPLITTER MOCA 2.0 COMPLIANT BANDPASS 5 – 1675 MHZ;

DEVICE IS NOT COMPATABLE FOR MoCA™ APPLICATION REQUIRED FOR DBS SATELITTE COAXIAL NETWORKING OR MULTI-ROOM DVR SHARING.

DEVICE WILL NOT PASS AC OR DC POWERING, APPLYING AC & DC POTENTIALS WILL DESTROY THE PRODUCT

MOCA™ 2.0 NETWORK OPTIMIZED, 5 – 1675MHZ PREFORMANCE - MOCA TECHNOLOGICALLY CONTINUES TO EVOLVE AND ADVANCE AS THE BROADBAND HOME NETWORKING STANDARD OF CHOICE. MMC1003H-B DIGITAL SPLITTERS ARE MOCA-OPTIMIZED FOR DELIVERING HD MEDIA AND BROADBAND DATA THROUGHOUT THE 1125 – 1675 MHZ FREQUENCY RANGE.

MoCA™ 2.0 NETWORK OPTIMIZED - CHOOSING THE MMC1003H-B FOR SPLITTING NEW AND PRE-EXISTING COAXIAL CABLE RUNS IN SDU’S, MDU’S AND SMALL BUSINESS NETWORKS. THE MMC1003H-B SPLITTERS MAINTAIN SYSTEM INTEGRITY AND RELIABILITY THROUGHOUT THE FULL 5 – 1675 MHZ BANDWIDTH.

WHILE MAINTAINING LOW PASSIVE INTERMODULATION. HIGH EMI SHIELDING EFFECTIVENESS PROTECTS AGAINST INGRESS. THE MMC1003H-B SPLITTER ALSO ENSURES MECHANICAL AND ENVIRONMENTAL RELIABILITY THROUGH PRESSURE-SEALED AND MACHINED F-PORTS AND 6KV SURGE WITHSTAND. 6 KV RING WAVE SURGE PROTECTED ALL PORTS ARE PROTECTED AGAINST MULTIPLE 6 KV RING WAVE SURGES PER IEEE SPECIFICATION C62.41 CATEGORY A3.

-45 DBMV SPURIOUS AND HARMONICS AFTER 5 SURGES OF 6 KV RING WAVE WITH A +55 DBMV RETURN SIGNAL PROPRIETARY FERRITE BLEND INHIBITS RE-MAGNETIZATION OF THE CORE DUE TO VOLTAGE SPIKES FROM IMPULSE NOISE OR LIGHTNING. THE FERRITE REMAINS ULTRA LINEAR TO PREVENT INTERMODULATION WHERE HIGH LEVEL RETURN CARRIERS CAN AFFECT FORWARD PATH VIDEO SIGNALS.

ECLIPSE CONTACT TECHNOLOGY (ECT) F-PORT PROVIDES 400% MORE CONTACT SURFACE AREA FOR LOWER CONTACT RESISTANCE AND HIGHER RELIABILITY.

CAPACITIVELY COUPLED F-PORTS PROTECTS AGAINST CORE RE-MAGNETIZATION AND SATURATION WHILE BLOCKING AC SURGES.

100% SOLDERED BACK ENSURES REPEATABLE 120 DB RFI SHIELDING. NICKEL PLATED ZINC DIE-CAST HOUSING, MACHINE THREADED F-PORTS
15 PSI PRESSURE-SEALED F-PORTS SECURES THE DEVICE’S ENCLOSED ELECTRONICS TO BE ENVIRONMENTAL PROTECTED FOR MANY OPERATIONAL YEARS.

5 - 1675 MHZ PERFORMANCE, PROVIDES 3 MIXED THRU LOSS (UNBALANCED) SIGNAL STRENGHT OUTPUTS AND MIXED MOCA DATA STREAM COMBINING.
