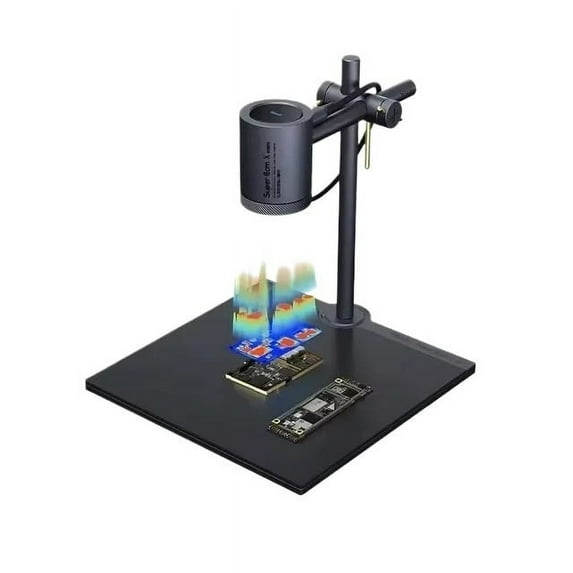

3D Infrared Thermal Imager Camera for Phone PCB Repair Motherboard Fault ,Accurate Readings

(No ratings yet)

Key item features

1. One-click quick check motherboard electricity leakage, quickly locate the abnormal part.
2. Capture and video.Anti-static silicone.Reserve the camera screw holes.
3. High temperature alarm tracking.Type-C connected to the PC.
4. 3D/2D thermal field distribution analysis.Regional temperature curve recording.
5. Adjusted lens for motherboard inspection and maintenance.256x192 resolution, 80-180mm range focal length.

Specs

Brand
ChenL
Assembled product dimensions (l x w x h)
7.09 x 2.36 x 7.09 Inches
Weight
35.3 oz
Has written warranty
No

Current price is $1,044.65

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

Feature:

1. Maximum temperature range

2. Test area maximum temperature

3. Test area minimum temperature

4. Minimum temperature range

5. Can adjust the angle of the visible light camera

6. Adjustable of infrared thermal imaging and visible light image is clearer image

7. Switchable display mode

8. You can capture pictures taken by PCB and save the data of infrared imaging.

9 can record images taken by PCB and save data of infrared thermography

10. Turn on quick check to quickly find the hottest place

Detector Type: Uncooled Vanadium Oxide Detector

Resolution: 52000 (260×200)

Wavelength Range: 7~14 µm

Camera Angle: 42°×32°

Frame Frequency: 25 Hz

Input Voltage: 5V DC

Power Consumption: <250 mW

Bracket Size: 150mm×160mm×161.5mm

Weight: 435g

Installation: Removable

Effective Temperature Resolution: 52000 dpi

Temperature Measurement Range: -20°C to 120°C

Interface Type: USB Type-C, USB

Storage Temperature: -15°C to +60°C

Package Size: 180mm×180mm×59mm

Display Mode: Infrared Thermal Imaging

Interface Type:

Type-C to USB: Connection interface from Type-C to USB

Picture Storage Format:

JPG: With a resolution of 640 × 480

Video Storage Format:

MP4: The format for video files

Temperature Measurement Function: Full-scale temperature measurement

Temperature Measurement Distance: From 2mm

Temperature Measurement Accuracy: ±5°C or ±5%

Accurate Temperature Measurement Range: -20°C to 120°C

Storage Temperature Range: -15°C to +60°C

Humidity: Up to 95% relative humidity

Related Products:thermal camera,thermal imaging camera,infrared camera,thermal vision,thermal imaging,thermal imager,infrared cameras thermal imaging,thermal imagers

1. One-click quick check motherboard electricity leakage, quickly locate the abnormal part.
2. Capture and video.Anti-static silicone.Reserve the camera screw holes.
3. High temperature alarm tracking.Type-C connected to the PC.
4. 3D/2D thermal field distribution analysis.Regional temperature curve recording.
5. Adjusted lens for motherboard inspection and maintenance.256x192 resolution, 80-180mm range focal length.
