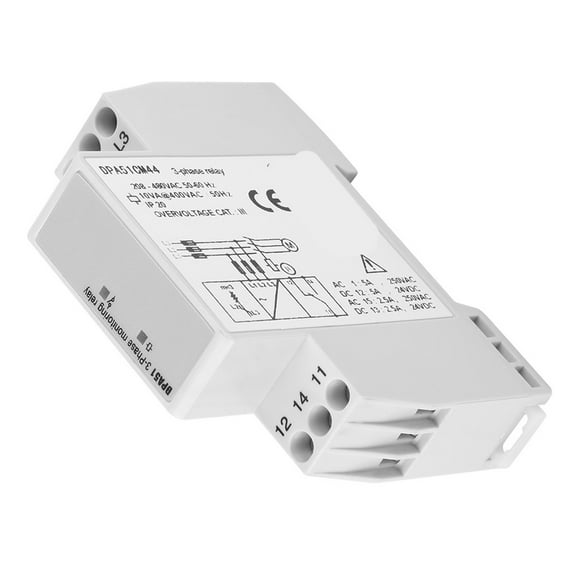

Three-Phase Relay, 208-480VAC Sequence Protector Phase Protector, Durable 3-Phase Home for System Motors Pumps Screw air Compressor Part

Feature: 1. DPA51CM44 3-Phase monitoring relay features strong anti-interference performance 2. Compact size and convenient for installation 3. Maintain constant and efficient work of the motor 4. Widely used in motor protection, elevator, air conditioning system, power system and other industries 5. 3-phase monitoring relay for phase sequence and phase loss Specification: Features: DPA51CM44 3-Phase monitoring relay features strong anti-interference performance. Compact size and convenient for installation. Maintain constant and efficient work of the motor. Widely used in motor protection, elevator, air conditioning system, power system and other industries. 3-phase monitoring relay for phase sequence and phase loss. Detects when all phases are present and have the correct sequence. Specifications: Model: DPA51CM44 Contact load: 5A/ 250VAC; 5 A / 24 VDC Rated current: 5A Rated voltage: 208-480VAC Protective features: IP20 3C rated voltage range: below 36V Measuring range: 208-480VAC Contact switching voltage: 250V Contact switching current: 5A Output: 1*SPDT relay Maximum load capacity: 5A/250VAC, 5 A / 24 VDC Electrical life: > 100,000 times Size: 8.1 x 6.7 x 1.75cm/3.1 x 2.6 x 0.6inch Package Included: 1 x 3-Phase Monitoring Relay
