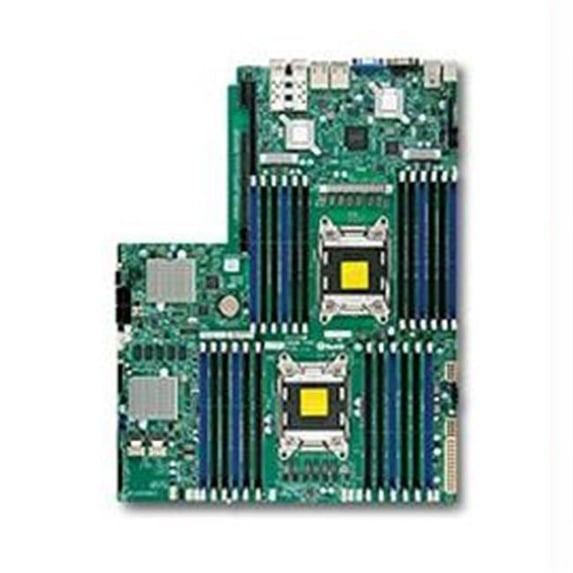

Supermicro MBD-X9DRW-7TPF plus -B Supermicro Motherboard MBD-X9DRW-7TPF plus -B Xeon LGA2011 Xeon E5-2600 C606 C602J SATA-SAS USB WIO Brown Box

Product SKUs
MBD-X9DRW-7TPF+ -B X9DRW-7TPF+ (Bulk Pack)
Form Factor
Proprietary WIO
Processor/Cache
CPU
Intel Xeon processor E5-2600 (up to 135W TDP)
Dual Socket R (LGA 2011)
Cache
Up to 20MB
System Bus
QPI up to 8 GT/s
System Memory
Memory Capacity
24x 240-pin DDR3 DIMM sockets
Supports up to 768 GB DDR3 ECC Registered memory (RDIMM) in 24 DIMM sockets
Supports up to 128 GB DDR3 ECC/non-ECC Un-Buffered memory (UDIMM) in 24 DIMM sockets
Memory Type
1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Support ECC and non-ECC UDIMMs
DIMM Sizes
32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
1.5 V, 1.35 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
Intel C602J chipset
SATA
SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS
SAS2 from LSI 2208 (1GB cache)
HW RAID 0, 1, 5, 6, 10, 50, 60 support
Supports up to 16 drives
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC
Network Controllers
Intel 82599 Dual Port 10G SFP+
Intel i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10G SFP+, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Video
G200 (Nuvoton WPCM450 BMC w/ graphic controller)
Input / Output
SATA
2 SATA 3.0 ports (6Gbps)
4 SATA 2.0 ports (3Gbps)
SAS
8 SAS2 ports (6Gbps)
L- SKU: AS133935
