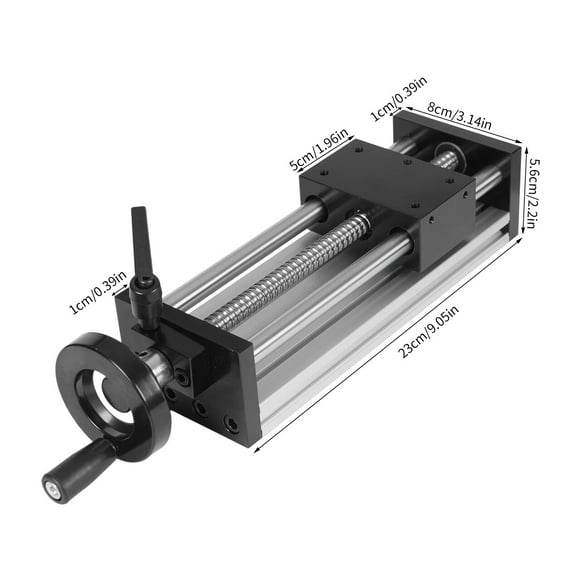

Manual Cross Sliding Table 150mm Linear Rail Module Slide Actuator & Handwheel
Key item features
- Build to Last: Made of aviation aluminum, this product is less prone to corrosion, wear, and deformation, ensuring your long-term use.
- Thoughtful Design: The two sides adopt a dual optical axis design structure, which makes the accuracy higher and gives the sliding table a larger load capacity and more stable operation.
- Low Noise: Adopting a ball screw design, it operates with low noise and will not disturb the work of others.
- Manual Control: You can manually control the running direction of the slide to achieve precise positioning and adjustment. The ergonomic handle offers a comfortable grip and the locking mechanism makes the slide less likely to loosen.
- Easy to Use: It does not require complex control systems or power supply, is easy to operate, and has low maintenance costs.
- Simple Cleaning: It has a smooth surface and a simple structure, so you only need to wipe the dust with a towel after use.
- Ideal Gift: It is an ideal gift for friends who are engaged in production machinery, making their measurements more convenient.
- Customer Service: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is definitely not "we sell and you buy".
- Round Edges: The smooth and rounded edges make it more comfortable to touch and enhance safety during operation.
- Movable Nuts: The movable nuts reserved at the bottom facilitates your installation.
Specs
- Manufacturer Part NumberGY323F-000100
- MaterialAviation Aluminum
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Our manual sliding table linear rail guide is a professional tool that is widely used in CNC equipment renovation, production machinery, testing equipment, precision measurement in optical laboratories, and more. High-quality materials make it sturdy and durable. The dual optical axis design structure and manual control of the sliding table operation direction achieve precise positioning and adjustment. In short, with its accurate and flexible characteristics, it will be your ideal choice! It is used for CNC equipment renovation, production machinery, testing equipment, precision measurement of optical laboratories, fine adjustment of displacement, positioning, and movement of mechanical equipment.
Specification
Material: Aviation Aluminum
Color: Black, Silver
Operation Mode: Manual
Positioning Accuracy: ± 0.05mm/0.002in
Maximum Horizontal Load Capacity: 30kg/66.14lbs
Maximum Vertical Load Capacity: 15kg/33.07lbs
Effective Stroke: 150mm/5.91in
Lead: 5mm/0.2in
Bearing Hole Diameter: 13mm/0.51in
Bearing Plate Height: 56mm/2.2in
Bottom Movable Nut Size: M6
Side Mounting Hole Size: M4
Installation Hole on the Slider: 4* M5
Hole Spacing on Slider: 30*60mm/1.18*2.36in
Product Length: 230mm/9.06in
Packaging Size: 31*11*10cm/12.2*4.33*3.94in
Gross Weight: 2kg/4.41lbs
Net Weight: 1.72kg/3.79lbs
Package Included
1* Manual Sliding Table Linear Rail Guide
Notes
1.Please confirm whether the size is appropriate before placing the order.
2.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
